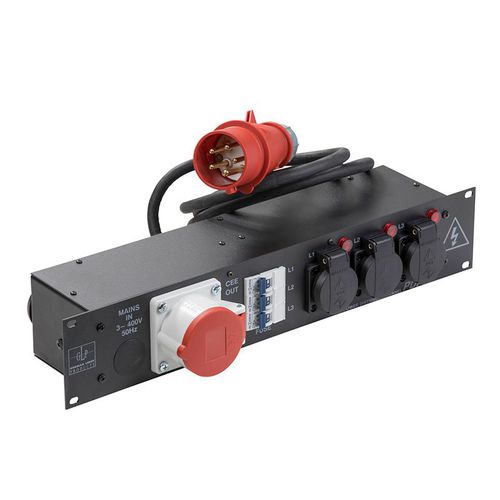

16 A Power Distribution with three SCHUKO- and one16 A CEE outputs on the front- and six SCHUKO outputs on the backside.
The /S version offers a higher security due to its RCBO fuse automats.
Power Distribution
Input -
CEE 400 V/16 A with 2 meter cable
Input Voltage -
380 – 400 V AC, 50 Hz
Fuses Standard-Version -
3 x C16A
Fuses /S-Version -
3 x RCBO C16A
Outputs Front -
3 x SCHUKO 230 V/16 A 1x CEE 400 V/16 A
Outputs Back -
6 x SCHUKO 230 V/16 A
Dimensions -
482 x 193.5 x 88 mm / 18.98 x 7.62 x 3.46 in
Weight -
4 kg / 9 lbs.
