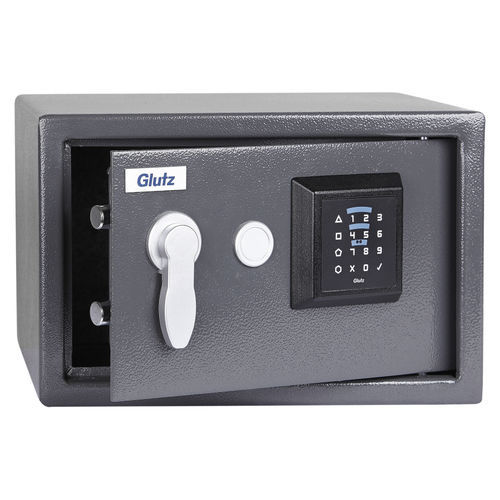

Secure storage with eAccess RFID code reader, battery-operated. The standard solution enables temporally limited, individually programmable access.
Opening and closing from outside take place with contact reading of the medium, such as a key tag or with entry of a PIN.
A mechanical key is available for emergency opening
Standard version
Identification via RFID Mifare DESfire EV 1 (ISO 14443A) or PIN
Programming via media or wireless access (868 MHz)
Housing design: Single-wall
Door design: Single-wall, 4 mm door leaf
Door locking: One side
Locking bolt: 15 mm thick
Door hinges: Internal
Anchor holes: 4 x rear wall, 4 x bottom
Paint: Dark grey
Electronic lock, 17 mm protrusion, batteries integrated, mech. emergency opening lock with 2 keys
Options
82550.200: 200 x 310 x 200 (H x W x D)
82550.225: 250 x 350 x 250 (H x W x D)
82550.250: 250 x 450 x 365 (H x W x D)
82550.380: 380 x 350 x 360 (H x W x D)
82550.520: 520 x 350 x 360 (H x W x D)
Scope of supply
Secure box
2 x emergency key
4 x AA battery
Quick guide
