Product profile

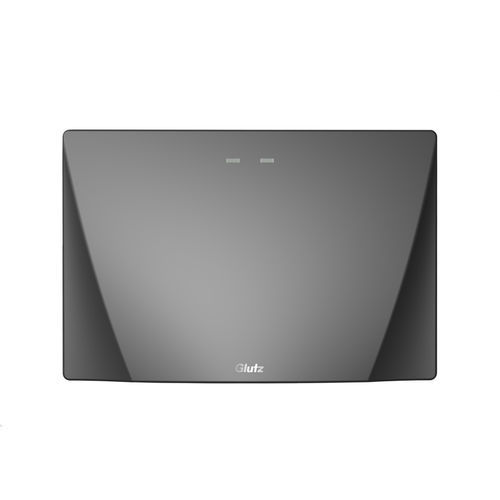

NET Gateway for indoor applications, wireless range extension with integrated antennas.
A operational TCP/IP network is required for operation; this network must be appropriately configured for building-wide functions. No network skills are required for the wireless network.
Standard version
Ethernet interface (RJ-45) / TCP/IP / RS485 Bus
PoE (Power over Ethernet) IEEE-802.3af, max. 15.4 W
Mains operation (12-24VDC), Current consumption: 250mA at 12V / 200mA at 24V, 1.5 W in standby
Dimensions (WxHxD): 204 x 137 x 35 mm
Scope of supply
NET gateway
Mount for wall fastening, fixing screws and anchors
Instruction manual
