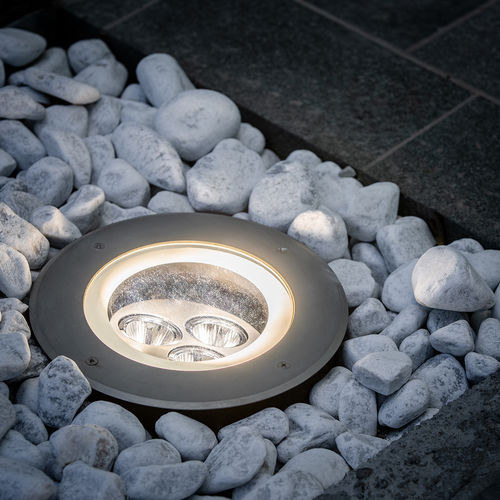

Recessed spotlight PASSUM UP

LEDroundIP67

PASSUM is the family of high performance recessed luminaires for outdoor use, with maximum lighting technology and extraordinary flexibility and precision in installation. Characterized by solidity, perfect watertightness, resistance to corrosion, it is divided into different versions in aluminum or AISI 316 L stainless steel. PASSUM UP is the choice for upward recessed lighting, modular and adaptable according to all needs, it also has a version with minimized installation height - ultraflat. Maximum modularity The lighting fittings of the range are supplied in 3 separate parts: 1 - low depth recessing box in waterproof technopolymer 2 - light body in aluminium or AISI 316L stainless steel, available in Ø 70/125/180 and 245 mm. Security tempered glass, thickness from 6 to 12 mm. Ultraflat Ø 125 version with opal glass. 3 - covering flanges, supplied separately, available in copper free aluminium or in AISI 316L stainless steel with stainless steel screws Fitting horizontal adjustment A complete regulation to align the fitting to the ground is possible even after the recessed box installation. Adjustable and rotating optic Fully adjustable optic (fixed for Ø 70 mm). Vertically ±15° for Ø 125 / 180 mm and ±15° / ±25° for Ø 245 mm. Horizontally for the right firing.
