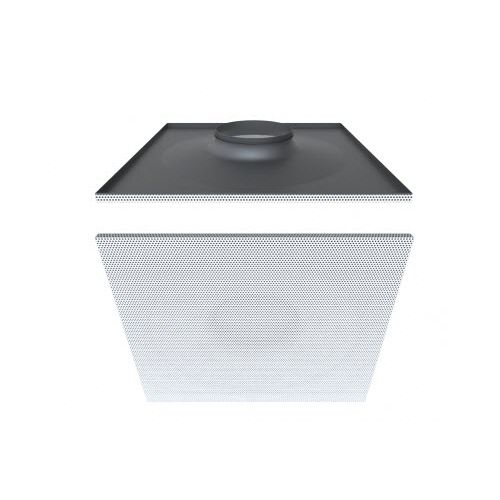

This perforated square ceiling diffuser made from powder coated steel is suitable for a T-profile system ceiling. This product is characterised by a uniform radial exhaust with strong Coanda effect over a broad temperature range (also for low air volumes). Suitable for top connection or side connection with plenum.
Ease of installation
Strong Coanda effect over a broad temperature range
Discrete diffuser
Ceiling
Suspended ceiling
Round
Rectangular execution
Airflow direction Radial
Airflow type Horizontal / supply
Shape Square
Panel size 594x594 mm
Panel perforation 26%, triangular (DG330)
51% / square, with flow deflector (DG330)
Available diameters 80 mm, 100 mm, 125 mm, 160 mm, 200 mm
Standard material Powdercoated steel sheet metal
Standard finishing RAL9010 (perforation), RAL 9005 (diffuser)
Product finishing options Powder coating RAL
Mounting option T-profile system ceiling
Spigot Class D spigot with double lip seal
Material Galvanised steel sheet, PP/TPE spigot
Optional insulation Melamine 6 mm
Mounting options Mounting eyes (Ø7mm) standard, mounting brackets available
