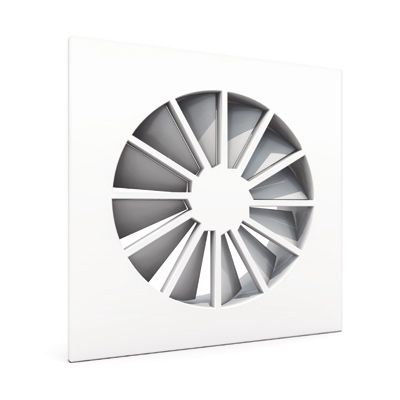

Ceiling air diffuser WS210

squarefor air supply and exhaust

Square steel swirl diffuser with fixed blades for air supply with high induction, i.e. an efficient reduction of room temperature differences. Ideal for the supply of strongly cooled and heated air with optimal conservation of comfort. The flat, simple and sleek design has an aesthetical added-value for designers and building owners. Extensive mounting options. Standard finishing RAL 9010. Optimal room comfort Appropriate for both VAV and CAV applications Available in different executions and finishes Ceiling Swirl Airflow direction Horizontal Airflow type Swirl/Supply, exhaust Shape Square Available sizes Ø100, 125, 160, 200, 250, 315, 400, 500 Standaard material Powder-coated sheet steel Standaard finishing RAL9010 Product finishing options Powder coating RAL Perforated pressure distribution plate Yes Spigot Class D spigot with double lip seal Volume control Perforated volume flow control disk inside the spigot Material Galvanised steel sheet, PP/TPE spigot Optional insulation Melamine 6mm Mounting options Mounting eyes (Ø7mm) standard, mounting brackets available Perforated pressure distribution plate Yes Material Galvanised steel sheet Mounting options Mounting eyes (Ø7mm) Mounting options Plenum: mounting eyes or brackets Diffuser: direct duct mounting, fixed or removable by central screw on plenum / transition piece Volume control Manually operated perforated damper in plenum spigot
