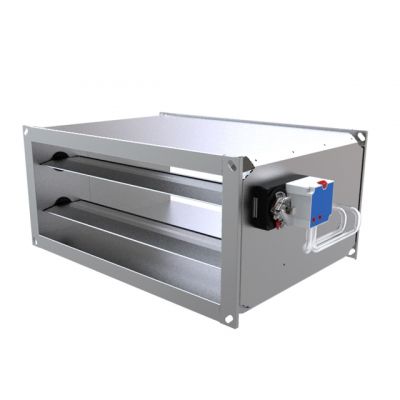

Galvanised rectangular VAV unit with counter rotating blades, supplied with an electronic actuator and aluminium differen- tial pressure sensor. This VAV unit can be applied for regulating constant or variable air volumes based on air quality and/or temperature. The aluminium blades are equipped with an airtight seal and maintenance free bearings. Housing meets Class C following EN1751, blades meet Class 2 following EN1751.
Aluminium extruded differential pressure sensor with an operating range between 1-10 m/s.
Class C housing following EN1751
Air volume controlled actuator with integrated display and controls (no external equipment required).
Airflow type Variable, supply and extraction
Shape Rectangular
Air flow control non-polluting aluminium differential pressure sensor
Length 400 mm
Min. height 150 mm
Max. height 1200 mm
Available steps in height 50 mm
Min. width 150 mm
Max. width 1200 mm
Available steps in width 50 mm
Frame size E20 (20mm) / E30 (30 mm)
Standard material Galvanised steel (275 g/m²)
Blades Aluminium extruded blades with strip seal
Insulation (BSD) Mineral wool 25 mm
Certification Housing: Class C (EN1751)/Damper: Class 2 (EN1751)
Min. air velocity Defined @ 1.0 m/s
Max. air velocity Defined @ 10 m/s
Standard actuator Grada G-01: 227VM-024-05/GRA
Input signal 2-10V (standard), 0-10V
Output signal 2-10V (standard), 0-10V
Operating voltage 24 VAC/VDC +/-20%
Operating conditions 0…+50°C - IP 42
