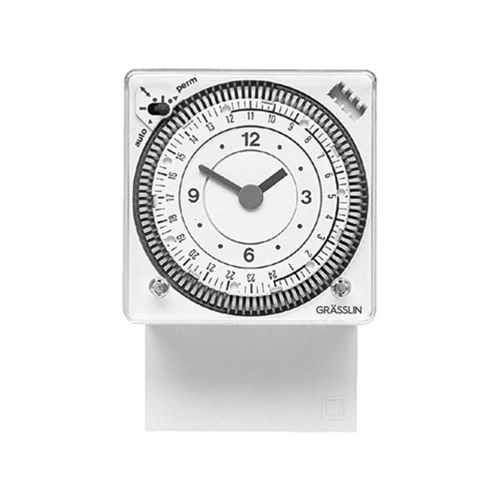

Analog time switch TACTIC 211.1

DIN rail

With power reserve Quartz controlled The universal timers from the tactic product range offer a wide range of uses throughout the building and also outdoors. They are used in switchgear, machine controls and specific solutions such as swimming pool controls or sprinkler systems. The analog 1-channel universal time switches of the tactic series are suitable for surface-mounting, installation and DIN rail mounting, are easy to use and are equipped with a quartz or synchronous drive. Operating voltage 230 V AC Frequency 50–60 Hz Installation type Front panel installation/wall installation Contact Changeover contact Program Daily program Power reserve 3 days full power reserve approx. 3 days after connection to operating voltage Switching capacity at 250 V AC, cos phi = 1 10 A Switching capacity at 250 V AC, cos phi = 0,6 2 A Shortest switching times 15 min Programable every 15 min Time accuracy at 25 °C ≤ ± 1 s/day (Quartz) Stand-by consumption 0,5 W Type of protection IP 20 Protection class II according to EN 60 730-1 Ambient temperature –10 °C … +55 °C
