Easy to transport (standard 20 ft and 40 ft container)
Prefabricated, expandable design
Rapid assembly and disassembly
Low power consumption (0.87 kWh per 1,000 l water treated)
Virtually odourless thanks to vented tanks
Parallel connection for larger volumes of wastewater
Less maintenance knowledge needed
Plug & play, ready for immediate use
Made in Germany
Working camps
Mining camps
Military camps
Quarries
Logging camps
Temporary works
Research camps
Upgrades

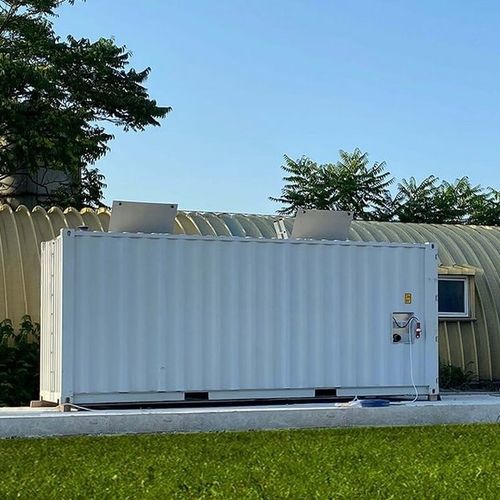

Equipment: 20 ft side door container
Material: Steel
Weight (tare): 3,180 kg
Dimensions: (L) 6,058 mm; (B) 2,438 mm; (H) 2,591 mm
Inlet: DN 110; height 2,600 mm
Outlet: DN 110; height 945 mm
Operating voltage: 400 V, 50 Hz (60 Hz)
Rated current: 16 A
Temperature range: -10°C to +35°C
Power consumption: 13 kWh/d
Inflow volume: 15 m³/d more on request
BOD5 load: 6 kg/d (60 gBOD5/inhab.*d)
Operating time: 24 h
Operation: Automatic
SS (suspended solids) < 30 mg/l
BOD5: < 10 mg/l
COD: < 120 mg/l
NH4-N: < 10 mg/
Ntot: < 20 mg/l
P < 1 mg/l
eColi < 100 cfu/100 ml
