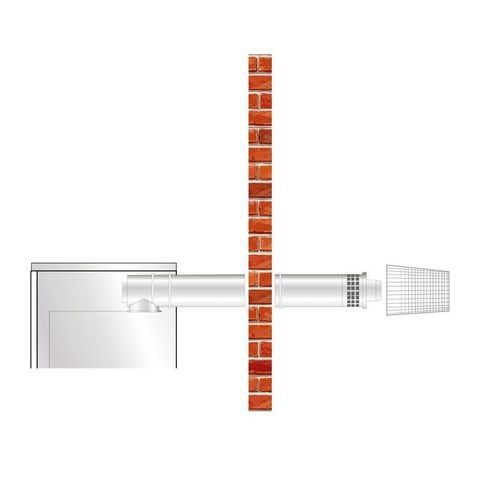

Balanced flue EZ-FIT

Overview
Suitable for Grant Indoor and Boilerhouse boiler models. The round low-level kit features self-sealing ducts that require no silicone or tape for joints and a unique quick-fit clamp arrangement to ensure a secure seal. The telescopic design and compact terminal make the Grant EZ Fit Flue System quick to install and visually discreet.

Features & Benefits

• Quick and simple installation with quick-fit clamps
• Telescopic design for adjustable length
• Extensions available to increase reach
• 123 mm flue pipe diameter for boilers up to 26 kW
• 152 mm flue pipe diameter for boilers from 26 kW to 70 kW
• Optional plume diverter (maximum discharge height 6 m)
• Compact terminal section ideal where aesthetics matter
• Terminal guard included
• Stainless steel construction

Technical specifications

• Compatibility: Grant Indoor and Boilerhouse boiler models
• Flue pipe diameters: 123 mm (up to 26 kW); 152 mm (26 kW to 70 kW)
• Design: Telescopic low-level balanced flue kit
• Material: Stainless steel
• Sealing: Self-sealing ducts (no silicone or tape required)
• Fixing: Quick-fit clamp arrangement for secure joints
• Optional accessories: Plume diverter (max height 6 m); extensions available
• Includes: Terminal guard and compact terminal section
