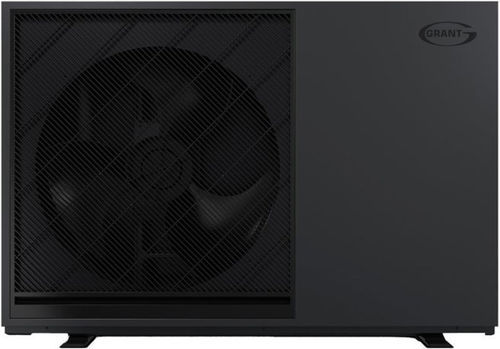

Air source heat pump AERONA R290

air/watercommercialresidential

Product overview
The Grant Aerona R290 is an inverter-driven air-to-water heat pump range using the natural refrigerant R290 (Propane). Available in 4 kW, 6.5 kW, 9 kW, 12 kW and 16 kW variants, the range is engineered for efficient space heating and domestic hot water with low lifecycle greenhouse gas impact and ultra-low noise levels.

Features & Benefits

• Heating outputs: 4 kW, 6.5 kW, 9 kW, 12 kW, 16 kW
• Inverter-driven compressors for modulating output and improved seasonal performance
• R290 (Propane) refrigerant with GWP = 3 for reduced greenhouse gas impact
• Ultra-low noise design — Quiet Mark certified
• Durable powder-coated black finish suitable for outdoor installation
• Anti-freeze protection: heater on plate heat exchanger and heated base tray for cold climates
• Compatible with Aerona Smart Controller; remote access requires Aerona Smart WiFi Hub

Awards & Accreditations

• Quiet Mark Certified
• Outstanding Innovation award
• Heat Pump Product award

Integrated Heating Packages
Grant Integrated Heating Packages pair the Aerona R290 heat pump with appropriate hot water storage and emitters to deliver a complete heating solution optimised for new-build properties and professional installations.

Knowledge – natural refrigerant R290
R290 (Propane) is a natural, low‑GWP refrigerant with strong thermodynamic properties that support high efficiency in heat pump systems. It is non-toxic and odourless; handling and installation must follow applicable safety standards and regulations.

Specification
HPR290i40 | Grant Aerona 4 kW R290 Inverter Air Source Heat Pump | ErP a+++ | Weight 101/116 kg | H 803 mm | W 1155 mm | D 422 mm | SCOP 4.81
HPR290i65 | Grant Aerona 6.5 kW R290 Inverter Air Source Heat Pump | ErP a+++ | Weight 117/137 kg | H 854 mm | W 1223 mm | D 461 mm | SCOP 5.02
HPR290i90 | Grant Aerona 9 kW R290 Inverter Air Source Heat Pump | ErP a+++ | Weight 132/149 kg | H 854 mm | W 1223 mm | D 461 mm | SCOP 4.60
HPR290i120 | Grant Aerona 12 kW R290 Inverter Air Source Heat Pump | ErP a+++ | Weight 155/182 kg | H 1365 mm | W 1155 mm | D 419 mm | SCOP 4.77
HPR290i160 | Grant Aerona 16 kW R290 Inverter Air Source Heat Pump | ErP a+++ | Weight 182/210 kg | H 1365 mm | W 1155 mm | D 419 mm | SCOP 4.59

Technical characteristics

• Models: HPR290i40 (4 kW), HPR290i65 (6.5 kW), HPR290i90 (9 kW), HPR290i120 (12 kW), HPR290i160 (16 kW)
• Refrigerant: R290 (Propane), GWP = 3
• Energy class: ErP rating a+++
• Noise: ultra-low noise design, Quiet Mark certified
• Cold-climate protection: plate heat exchanger heater and heated base tray
• Finish: powder-coated black
• Controls: compatible with Aerona Smart Controller; Aerona Smart WiFi Hub required for remote access
• Per-model weights, dimensions and SCOP values listed above
