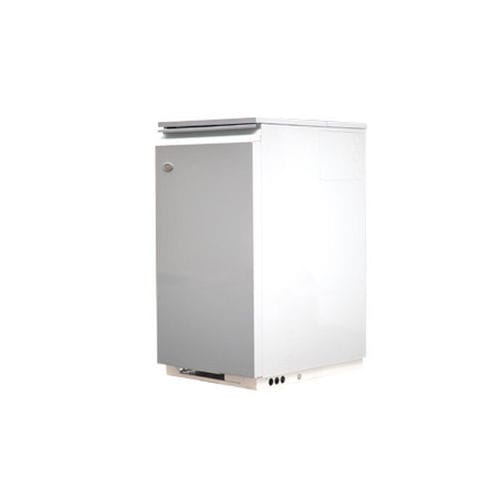

Oil-fired boiler VORTEX

for heating onlykitchenindoor

Overview
The Grant Vortex Utility range are free-standing, indoor condensing oil boilers designed for utility and kitchen installation. The family covers outputs from 15 to 70 kW and incorporates a stainless steel condensing heat exchanger with turbulator baffle system for high seasonal efficiency. Models are suitable as direct replacements for many older oil-fired boilers due to compact widths on selected variants.

Features & benefits

• SEAI HARP "A" energy rating
• Equipped with Riello RDB burner
• Multiple flueing options for flexible installation
• Full front service access to burner and internal components
• Compliant with OFTEC standards and applicable EC directives
• Simple and fast installation with minimal wiring requirements
• 1 year manufacturer’s warranty; 5 year guarantee on boiler heat exchanger (T&Cs apply)

Installation & Commissioning
Installation must comply with current Building Regulations. Boilers require on-site commissioning at installation to ensure peak performance and declared efficiency. Annual maintenance is facilitated by full front access to serviceable parts. Suitable locations include kitchen units (compact models), boiler houses and utility rooms.

Awards & Accreditations

• SEAI HARP "A" rating
• SEDBUK recognition
• Featured in Oil Boilers, September 2019

Specification
Product code | Model | Product Fiche | Set Output | Max Output | Weight | Height | Width | Depth | Efficiency | NOx Emissions | Energy Rating | Load Profile
VORTUT15-26 | Grant Vortex Utility 15-26 | (product fiche available) | 21kW | 26kW | 130kg | 860mm | 470mm | 603mm | 95 | Compliant | A | -
VORTUT26-36 | Grant Vortex Utility 26-36 | (product fiche available) | 31kW | 36kW | 144kg | 900mm | 470mm | 603mm | 97 | Compliant | A | -
VORTUT36-46 | Grant Vortex Utility 36-46 | (product fiche available) | 41kW | 46kW | 150kg | 900mm | 470mm | 603mm | 92.6 | Compliant | A | -
VORTUT46-70 | Grant Vortex Utility 46-70 | (product fiche available) | 64kW | 70kW | 282kg | 1234mm | 563mm | 786mm | 93.6 | Compliant | A | -

Technical specifications

• Range of 22 models across outputs from 15–70 kW (Vortex series)
• Stainless steel condensing heat exchanger with turbulator baffle system
• Riello RDB burner fitted as standard
• Multiple flueing options for site requirements
• Full front service access for straightforward maintenance
• Compliant with OFTEC standard and relevant EC directives
• SEAI HARP A energy rating
• Warranty: 1 year manufacturer’s warranty; 5 year guarantee on boiler heat exchanger (T&Cs apply)
• Refer to Specification lines above for model codes, outputs, weights and dimensions
