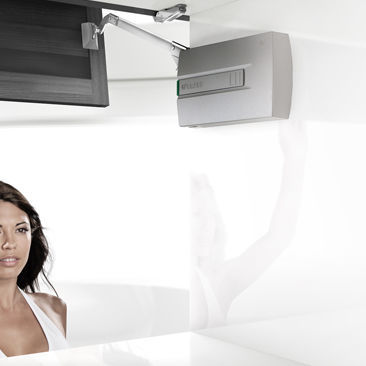

Furniture hinge KINVARO F-20

aluminumspringintegrated soft-close mechanism

Folding flap system Easy opening, smooth movement, safety in every position – the defining characteristics of the Kinvaro F-20. Simply opening a folding flap system is a delight in itself because the fronts swing upwards through the whole movement course gently supported by a functional spring. This precisely delivered supporting force ensures extremely harmonic movements while holding the flaps securely in all positions. Moreover, a stop function makes it possible to limit and individually adjust the opening angle of the Kinvaro F-20. Thanks to the integrated adjustable soft-close damping, even heavy flaps made from MDF or glass can be closed easily and, above or else, silently. • Holds the flap securely in any position • Extremely smooth movement • Adjustable spring force • Integrated adjustable closing damper • Flap 3-dimensionally adjustable – height, side, angle: Direct adjustment ± 1.5 mm • Joint 3-dimensionally adjustable – height, side, depth: Direct adjustment • Opening limiter adjustable to 90° • Wide range of applications for many different flap materials • Fast, tool-free clip front fitting • Pre-assembled Euro screws and positioning dowels for easy attachment of the fitting to the side wall • Extremely strong • Range of flaps: Width: 400 – 1200 mm, Height: 520 – 900 mm • Cover caps in white and grey, similar to RAL 7045
