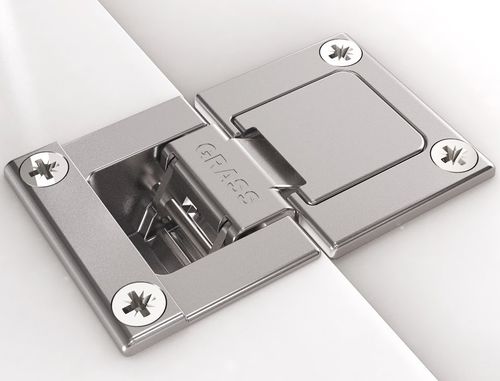

Furniture hinge Tiomos flap

aluminumhomecontemporary

Now Tiomos offers a new functional movement solution for flaps Functional: The flat rectangular hinge creates a smooth transition from the base panel to the flap. In combination with the Kinvaro D flap system, this offers maximum functionality for opening drinks compartments. Opening comfort: The flap hinge not only offers perfect access with an opening angle of 90 degrees, but it is also compatible with the Tipmatic system for handle-free opening. Impressive: With the strong flap hinge, it is possible to install flaps of up to 12 kg and with a thickness of 14 to 28 mm. In addition, the flap overlay of up to 19 mm and the additional Night colour option provide maximum design freedom. 3-dimensional: With the integrated vertical, lateral and overlay adjustment the flaps can be perfectly adjusted for a modern, narrow gap alignment.
