The problem-solver for special requirements

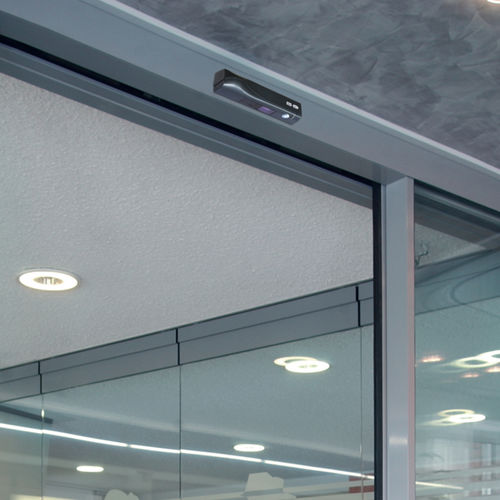

The heavyMaster sliding-door drive is the problem-solver for your special requirements. Sliding panels with large dimensions or heavy weights of up to 200 kg are driven reliably and silently. Even in very high-traffic entrance areas, the heavyMaster ensures optimal running characteristics with the least wear, thanks to the stable carriage and large rollers with rubber-coated running face. Sliding panels framed with thermally broken system profiles or steel profiles are ideally suited for assembly with heavyMaster. The drives are certified to DIN 18650/EN 16005, type-tested by TÜV and comply with the current directives and standards. The HM-F drive system is tested and suitable for use in escape and rescue routes (AutSchR).
Convincing in detail
Type HM-F: redundant drive with 2 motors for use in escape and rescue routes
Stable bogie with large wheels
Running smoothness thanks to bogie wheels with exchangeable rubber coating
Clear and simple operation
Optionally available with locking element in the carriage or floor/hook bolt lock (optional)
Delicate-appearing G30 profile system for sliding panels with up to 120 kg door leaf weight
Self-learning control system with many connection and adjustment options
Continuous floor guide (optional)
