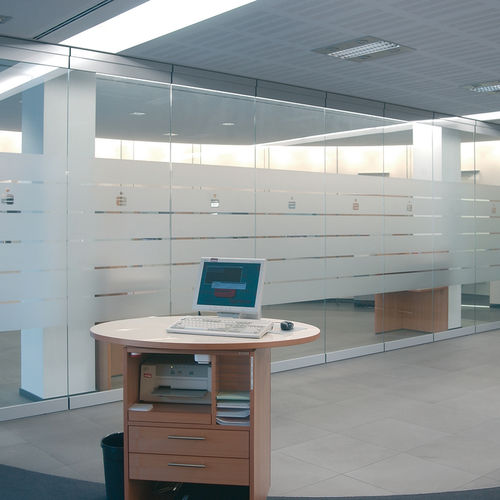

Sliding partition GSW-A

glasscommercialframeless

Exclusive and convenient The automatic all-glass sliding wall system shopMaster GSW-A offers a wide variety of design options for architects and planners as well as maximum convenience for operators or users. The system's compact design requires only minimal space for roller track and parking niche. The running modules are equipped with state-of-the-art bogies with plastic-coated, ball-bearing supported wheels. These guarantee reliable functioning and noiseless movement of the elements throughout their service lives. Thanks to the small roller track height of 86.5 mm, installation flush with the ceiling is possible almost everywhere. The required floor guide provides additional stability and utmost convenience to the user. For safety reasons, the automatic all-glass sliding wall can be moved by hand in the event of a power failure. Convincing in detail Small installation height Distance between moving panels adjustable: 50 – 1500 mm Ball bearing supported and plastic-coated high-quality bogies Continuous floor guide Panels movable by hand in the event of a power failure Optionally available with fully automatic wall cover for parked panels Functional features Obstacle recognition Maximum impact force 150 N Automatic locking Decelerated speed into the end positions Emergency release via profile cylinder
