Quickly installed
Simple application
Fast installation
Can be quickly adjusted in three dimensions
Stable hinge seating during and after setting the door hinges
Developed also for use with small overlap heights
Product information

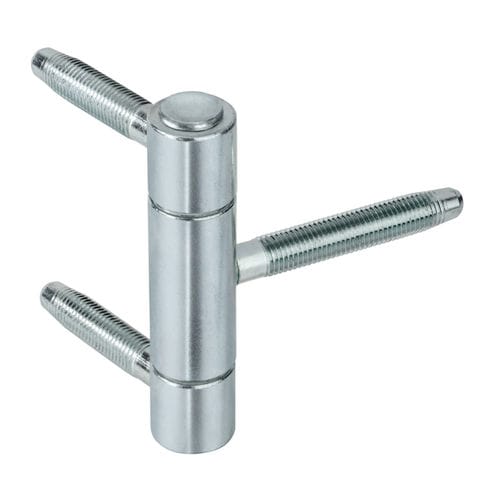

3-part hinges for rebated timber elements
2D adjustable
Slip-on bushes available in different finishes
Maintenance-free bearing system
Materials
Optional stainless steel hinge components
Technical data
Hinge ø 20 mm
Length of roll 95 mm
Sash pins 9.8 x 60 mm
Frame pins 9.8 x 45 mm
Area of application: House entrance door, Balcony door
For elements of: Timber
Functional area: Sound insulation
Bandtyp: Drill-in hinge
Rebate version: rebated
