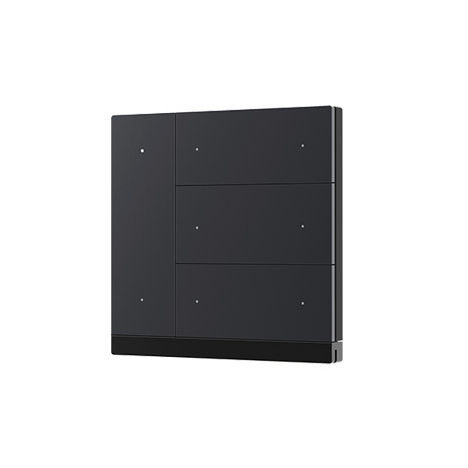

KNX Push Button Sensor, 4/6/8 buttons integrates the basic control functions of Switch, Dimming, RGB/RGBW lighting, Colour temperature control, Blind, Scene, Value sender, Shift register, Multiple operation, Delay mode, RTC operation mode, String sending, and has a built-in temperature sensor to detect the local ambient temperature and supports RGB indication function. In addition, the series products support Logic function and Scene Group function, and 2 external input interfaces (as Binary input detection or NTC detection), provide more possibilities for special and complex applications.
The functions are summarized as followed:
Switch and Dimming
Blind control
Value sender
Scene control
Shift register
RGB , RGBW and colour temperature control
Multiple operation
Delay mode
Send RTC operation mode
Send Strings
Built-in temperature sensor
Logic output, Scene group conversion;
RGB LED indication function
Bus voltage 21-30V DC, via the KNX bus
Bus current <21mA, 24V ;<18.5mA, 30V
Bus consumption <555mW
Input 2 external inputs, as dry contact input or 10K NTC input
Connection KNX ,Bus connection
Input Screw terminals, Wire Range: Multi-core 0.2-1.5mm2 ;Single core 0.2-2.5mm2 ;Torque 0.4N-m ;Length <5m;
Operation – 5 °C ... 45 °C
Storage – 25 °C ... 55 °C
Transport – 25 °C ... 70 °C
Humidity <93%, except dewing
Dimension 86 × 86 × 33mm
Weight 0.09kg
