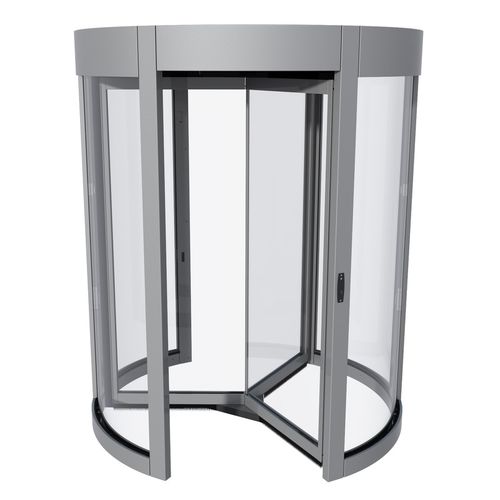

Entry door GYROSEC

glassrevolvingglazed

Motorised security revolving door for internal or semi external installation The GyroSec prevents tailgating and piggybacking. On receiving a signal from the access control system or push button on exit, GyroSec rotates to allow authorised passage. Key Specifications Power Supply: 230Vac 50Hz or 115 Vac 60 HZ Power Rating: 230V AC - 1,4 A / 115V AC - 2,8A Logic voltage: 24V DC Operating Temperature From 0° to 50° IP rating / MCBF/ MTTR: IP33/1,5M cycles / less than 30 min Flow Rates (approximate figures): Proximity Reader: ”Hands Free”, 48 passages per minute (simultaneously in both directions) Pin Pad: 30 passages per minute (simultaneously in both directions) Proximity Reader + Pin Pad: 20 passages per minute (simultaneously in both directions)
