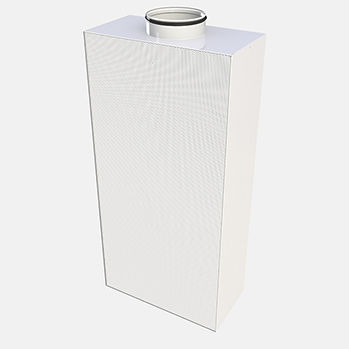

Ceiling displacement air diffuser ZRE / ZRW

floorrectangular

Rectangular displacement unit, which is excellent for general use. Capable of a large supply airflow range Uniform supply air distribution is achieved through small perforations, providing optimal conditions in the immediate proximity of the diffuser. Low velocity air is supplied horisontally at the floor level The detachable front panel and metallic internal structure enable cleaning of the unit and ductwork Circular or rectangular duct connections available, with integrated rubber gasket at the top/bottom, or circular connections on the side or back. Product Models and Accessories Optional duct connection locations Stainless steel (AISI 316) design Model with thick front panel (1.5 mm) Duct cover Installation base Installation frame The Halton Zen Rectangular displacement ventilation supply unit is made of galvanised steel, polyester-epoxy-painted with a white (RAL 9010) colour. The unit has a robust maintenance-free, non-clogging design. The unit is comprised of a detachable, perforated front panel, an internal flow equalization plate, and casing. The unit has a circular or rectangular duct connection on at the top, or a circular connection on the left/right side or back depending on where the unit is located. Mounting brackets are included in the delivery, screws not. Options The unit is equipped with a duct cover and/or installation base, where required. The front panel of the unit is available of 1.5mm thick galvanised steel for demanding spaces.
