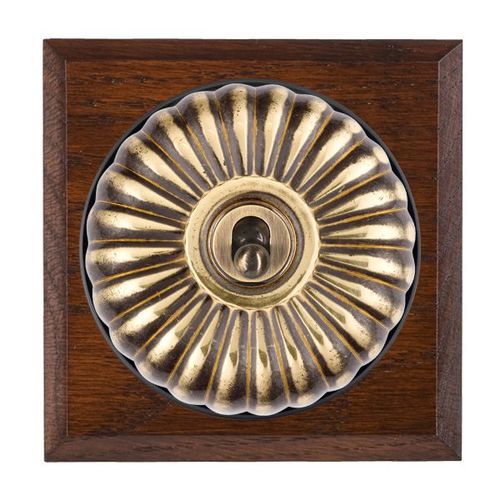

Bloomsbury replicates the traditional style of the original light switch while meeting today’s standards. There are two designs of dome – fluted or plain mounted on a wooden plinth in four different finishes, sourced from suppliers who carry the FSC logo.
-Classic style
-Four different wood finishes with a choice of Ovolo or Chamfered Edge
-Fluted or plain dome design
-Fits most flush mounted metal wall boxes
Primary Range Bloomsbury Fluted Dome
Insert Type 1 gang 20AX 2 Way Toggle
Insert Colour Antique Brass/Black Collar
EAN13 Barcode 5028690101857
Commodity Code 85363030
Luckins TSI 391578791
Dimensions(Nominal)
Single: Height = 88.0mm Width = 88.0mm Depth = 14.5mm Plinth, Collar and
Dome Depth = 45.0mm
Switched Poles Single
Current Rating 20AX
Voltage 220/250V AC
Maximum Load 20 Amp inductive
Mains Frequency 50Hz
IP Rating IP2XD
Contact Gap Minimum 3mm
Terminal Capacity 1 5x1mm²
Terminal Capacity 2 4x1.5mm²
Terminal Capacity 3 2x2.5mm²
Terminal Capacity 4 2x4mm² Multi-strand
Terminal Capacity 5 1x6mm²
Earth Terminal Capacity 1 6x1mm²
Earth Terminal Capacity 2 5x1.5mm²
Earth Terminal Capacity 3 3x2.5mm²
Earth Terminal Capacity 4 2x4mm² Multi-strand
Earth Terminal Capacity 5 1x6mm²
Product Class 1 Must be earthed
Ambient Operating Temperature -5° to +40°C
Recommended Location Internal Use Only
Maximum Installation Altitude 2000m
