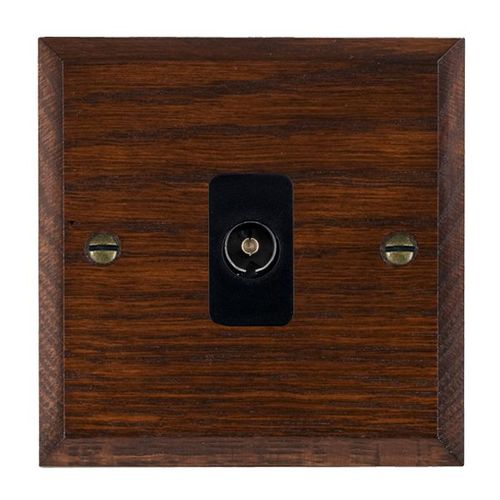

TV socket Woods

SATradiodouble

An attractive and unique range in four natural wood finishes with a choice of Ovolo or Chamfered edge. The plates are manufactured from timber sourced from sustainable woodland, as far as possible. Ideal for a building with character. -Four natural wood finishes -Timber sourced from suppliers who carry the FSC logo -Plates treated to meet BS EN standards -Suitable for all the standard Hamilton electrical inserts -EuroFix options also available. Primary Range Woods Insert Type 1 gang Non-Isolated TV 1in/1out Insert Colour Black EAN13 Barcode 5017504931605 Commodity Code 85367000 Luckins TSI 391589395 Dimensions(Nominal) Single: Height = 88.0mm Width = 88.0mm Depth = 13.5mm Switched Poles N/A Current Rating n/a IP Rating IP2XD Contact Gap Minimum N/A Earth Terminal Capacity 1 5x1mm² Earth Terminal Capacity 2 4 x 1.5mm2 Earth Terminal Capacity 3 3 x 2.5mm2 Earth Terminal Capacity 4 1 x 4mm2 Multi-strand Earth Terminal Capacity 5 1 x 6mm2 Product Class 1 Must be earthed (ref BS7671 415.2.1) Ambient Operating Temperature -5° to +40°C Recommended Location Internal Use Only Maximum Installation Altitude 2000m Standard/Approval BS 5733
