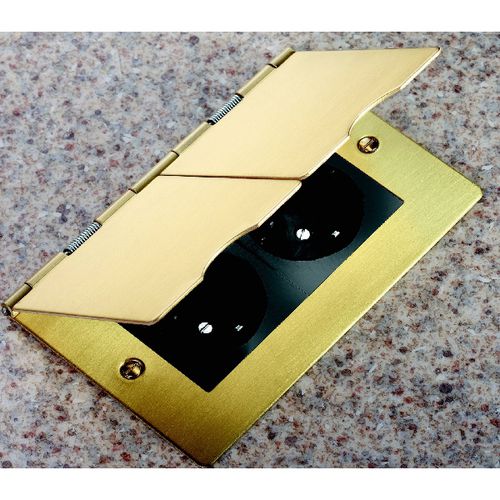

Power socket Sheer

doublefloorrecessed

A contemporary design and superior, high quality finish ensure that the Floor Sockets effortlessly inject style into your interior, be that in the home or at the office. • Practical and robust • Protective sprung cover • Accessibility to power in large, open plan areas • Both British and International power accessories along with Téléphoné and TV Insert Type 2 gang 10/16A 220/250V AC German Unswitched Socket Insert Colour Black EAN13 Barcode 5017504034764 Commodity Code 85363010 Luckins TSI 398355111 Dimensions(Nominal) Double: Height = 93mm Width = 145mm Depth = 3.0mm (6.5mm Hinged Cover) Switched Poles None Current Rating 10/16 Amp Voltage 220/250V AC Maximum Load 16 Amp Mains Frequency 50Hz IP Rating IP2XD Contact Gap Minimum None Terminal Capacity 1 3x2.5mm² Terminal Capacity 2 3x4mm² Terminal Capacity 3 2x6mm² Multi-strand Terminal Capacity 4 1x10mm² Product Class 1 Face plate must be earthed Ambient Operating Temperature -5° to +40°C Recommended Location Internal Use Only Maximum Installation Altitude 2000m Standard/Approval BS EN ISO 5733 + IEC 60884-1 Additional Notes Shuttered:Ye
