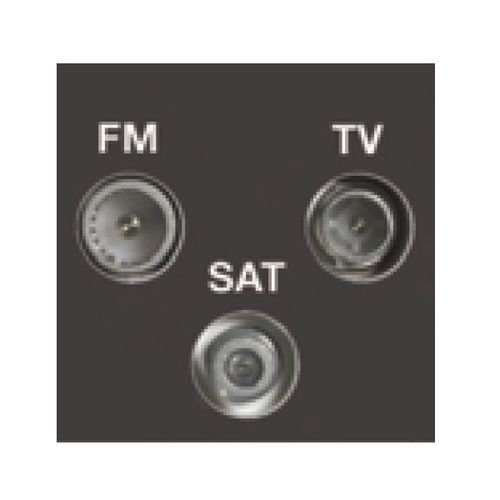

TV socket EuroFix

SATradiotriple

While the plates affix normally to BS wall boxes the various inserts clip into Euro standard apertures. Inserts can be combined to requirements and installed on Euro aperture plates that are available in a number of styles compatible with other accessories from the Hamilton range. -Standard Euro apertures -Plates affix to BS wall boxes and are available in most Hamilton designs -Insert modules include those essential for today’s audio-visual, data and media connectivity -Inserts clip into plates and can be combined to suit requirements Primary Range EuroFix Insert Type 50x50mm Module Non-Isolated TV+FM+SAT Triplexer 1in/3out (DAB Compatible) Insert Colour Black EAN13 Barcode 5017504068561 Commodity Code 85367000 Luckins TSI 391430758 Dimensions(Nominal) Module: Height = Width = Depth = Weight 95 GR Switched Poles N/A Current Rating n/a IP Rating IP2XD Contact Gap Minimum N/A Earth Terminal Capacity 1 5x1mm² Earth Terminal Capacity 2 4 x 1.5mm2 Earth Terminal Capacity 3 3 x 2.5mm2 Earth Terminal Capacity 4 1 x 4mm2 Multi-strand Earth Terminal Capacity 5 1 x 6mm2 Product Class 1 Must be earthed (ref BS7671 415.2.1) Ambient Operating Temperature -5° to +40°C Recommended Location Internal Use Only Maximum Installation Altitude 2000m
