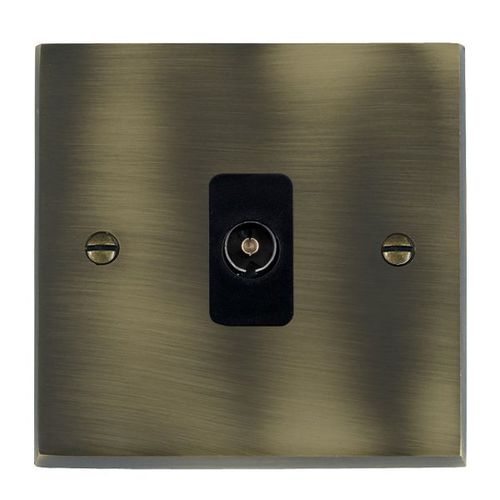

TV socket Cheriton Victorian

SATradiodouble

Quality Accessories on Georgian and Victorian Plates Capturing all the charm and elegance of the Georgian and Victorian period. The plates are traditional cast brass with a choice of finishes. The range consists of two designs, Georgian and Victorian. • Two designs – Georgian and Victorian • Georgian available in two finishes • Victorian available in six finishes • Switch inserts to match the plate finish • Standard box-fix electrical accessories • Grid and EuroFix options also available (see separate GRID-IT and EuroFix sections for inserts.) Primary Range Cheriton Victorian Insert Type 1 gang Non-Isolated TV 1in/1out Insert Colour Black EAN13 Barcode 5017503381609 Commodity Code 85367000 Luckins TSI 387387679 Dimensions(Nominal) Single: Height = 88.5mm Width = 88.5mm Depth = 7.5mm Weight 186 GR Switched Poles N/A Current Rating n/a IP Rating IP2XD Contact Gap Minimum N/A Earth Terminal Capacity 1 5x1mm² Earth Terminal Capacity 2 4 x 1.5mm2 Earth Terminal Capacity 3 3 x 2.5mm2 Earth Terminal Capacity 4 1 x 4mm2 Multi-strand Earth Terminal Capacity 5 1 x 6mm2 Product Class 1 Must be earthed (ref BS7671 415.2.1) Ambient Operating Temperature -5° to +40°C Recommended Location Internal Use Only Maximum Installation Altitude 2000m Standard/Approval BS 5733
