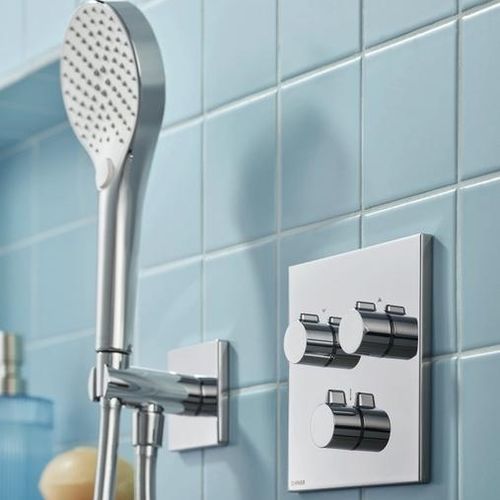

Shower installation unit HANSA BLUEBOX

Overview
HANSA BLUEBOX is a universal concealed installation system for showers and baths that combines minimalist design with installer-focused engineering. It supports flexible installation depths, pressure-independent functionality, universal compatibility and easy maintenance while enabling future-ready bathroom design.

Key benefits

• Universal concealed installation unit designed for showers and baths
• Flexible installation depth to adapt to different build situations
• Pressure-independent and stable temperature performance even with supply changes
• Easy maintenance and long-term flexibility — supports final-stage selection of trim kits and mixing technology
• Backward and forward compatibility with HANSA BLUEBOX trim kits (compatible with BLUEBOX trim kits since 2015)

Three mixing technologies supported

• Single-lever mixers — updated trim kits offering good value, reliable performance and familiar usability
• HANSA EASYMIX — new concealed mixing technology with a sophisticated interface for precise control and slim trim kits
• HANSA EASYTHERM — new concealed thermostats delivering premium comfort and safety with automatic reaction to water supply changes

Design and operation highlights

• Slim design options: optimally slim 8 mm rosettes and slim trim kit designs (square and round)
• Total projection of selected trim kits only 28 mm
• Independent 0–100% flow control and ability to control up to two outlets in parallel
• SENSO TUNE function (in EASYMIX) enabling ultra-precise 0.1 °C adjustments in the sensitive middle range
• Reliable thermostatic cartridge for stable temperature and reduced energy/water use via automatic temperature regulation
• Safety features including a 38 °C safety lock to prevent scalding

Application & flexibility
BLUEBOX is tailored for both renovation and new-build projects. It allows efficient future changes: switching between the three supported mixing technologies can be performed without restrictions or additional adapters, enabling installers and end users to adapt finishes and functions across the product lifecycle.

Caractéristiques / spécifications techniques

• Product family: HANSA BLUEBOX (universal concealed installation system)
• Supported mixing technologies: Single-lever, EASYMIX, EASYTHERM
• SENSO TUNE precision: ultra-precise 0.1 °C adjustments (EASYMIX)
• Rosette thickness: optimally slim 8 mm (selected trim kits)
• Total projection (selected trim kits): 28 mm
• Flow control: independent 0–100% flow control
• Outlet control: can operate up to two outlets in parallel
• Thermostatic performance: reliable thermostatic cartridge with stable temperature under water supply variations
• Safety: 38 °C safety lock to prevent scalding
• Compatibility: compatible with HANSA BLUEBOX trim kits since 2015; supports efficient switching of mixing technologies without new adapters
• Installation: supports flexible installation depths and professional installation workflows
