Steel coalescence separators for the pretreatment of petroleum and readily settling suspended solids.
Our solutions – your benefits – steel oil/water separators integrated in AQUAFIX settling tanks

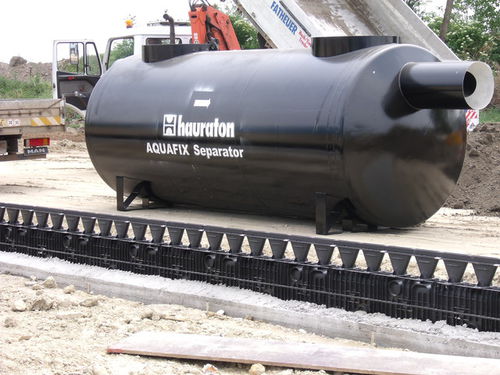

High-capacity steel separators are most often used in areas where there is a very high volume of polluted wastewater run-off. The water flowing out of the separator is cleaned to a high degree in accordance with EN 858. The separator is made of A573 steel with a minimum thickness of 6 or 7 mm. The inner surfaces of the separator tank are protected with a coating resistant to substances contained in rainwater. The external surface of the separator tank is protected against corrosion.
Coatings to protect the tank inside and outside
Wide capacity range from 15 to 4000 l/s
Units available with 5-fold and 10-fold by-pass
Integrated settling tank
Compliance with EN 858
Separation chamber equipped with a multi-stream coalescing filter
