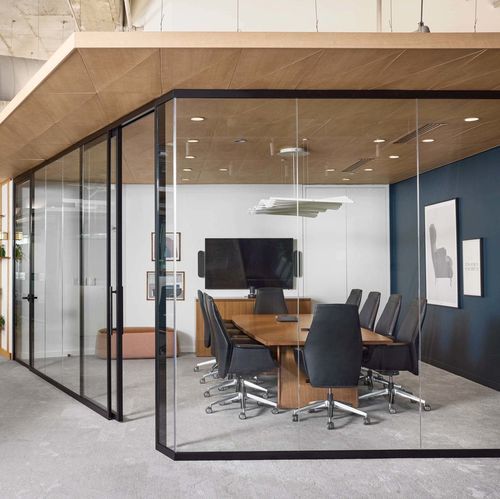

Removable partition 1-1/8” PLATFORM 4SPACE

modularwith glass panelaluminum

Overview
The 1-1/8" Glass Walls Platform by 4SPACE is a component-based single-glazed glass wall system engineered for architectural interiors. Rails are supplied to be cut to fit on-site for maximum installation flexibility. The system provides slim profiles and seamless transitions to define space with openness and precision while enabling efficient design, delivery and installation workflows.

System Overview
Kit-of-parts approach with in-stock components, door options, hardware, transition details, materials and finishes. The platform supports expedited project timelines through select stocked components for rapid delivery and faster installation.

In Stock / Ready to Ship

• Select curated, in-stock components to assemble installations with predictable lead times and reduced procurement complexity.

Components

• Trim: Black and Metallic Silver finish options.
• Doors: Glass Slab, Framed Single Glazed, Wood, Wood Glazed. Swing and sliding configurations available.
• Hardware: Cylinder hardware, ladder pulls (locking and non-locking), mortise latchset options, electric strike options.
• Transitions: Inline, 2-Way and 3-Way options for glass-to-glass, glass-to-drywall and glass-to-solid connections; drywall starters and accessories available.
• Accessories: AV mounts, room scheduler brackets, electrical boxes and mounting brackets.

System Fundamentals
Top and bottom rails are 2-1/2" (63.55 mm) high for visually light attachments to the base building. Removable clads provide quick access to glass levelers and are available on the bottom and starter rail. Glazing strips adhere to glass with adhesive, creating a segmented glass aesthetic and may be applied horizontally, vertically or diagonally. Glazing strips are manufactured in 10' (3048 mm) lengths and are cut to fit on-site.

Starter Rail

• Allows mounting glass walls to drywall.
• Includes a removable clad for simplified installation access.

Curved Glass

• Curved rail sections available in nominal radii: 24" (609.6 mm), 30" (762 mm) and 36" (914.4 mm).
• Accommodates laminated glass from 3/8" (10 mm) up to 1/2" (12 mm) with a 0.030" (0.76 mm) inner layer.

Doors — Key Notes
Swing and sliding doors support varied applications and aesthetics. Typical provisions include:

• Glass Slab (Swing): Optional concealed closer, optional drop seal. Door Height up to 10' (3048 mm); Leaf Widths: 36" (914 mm), 42" (1067 mm), 48" (1219 mm); Glass Thickness: 3/8" (10 mm).
• Framed Single Glazed (Swing): Optional concealed closer, optional drop seal; glass set off-center for a flush corridor appearance; Door Height up to 10' (3048 mm); Door Thickness 1-3/4" (45 mm); Leaf Widths 36", 42", 48"; Glass Thickness: 3/8" (10 mm) or 1/2" (12 mm).
• Sliding Doors (Glass Slab and Framed): Standard close assist; optional drop seals and interlocking bypass side seals; dimensions vary by configuration (door heights to 10' / 3048 mm).
• Wood and Wood Glazed options available within similar dimensional ranges with optional concealed closers and drop seals.

Hardware — Key Notes

• Non-Locking Ladder Pull: Tubular design, 1" (25.4 mm) diameter, 18" (457 mm) overall length; available for all door leaf types.
• Locking Ladder Pull: Asymmetric locking ladder pull with ADA thumbturn, floor dead bolt, SFIC housing; 1" diameter; 49-3/16" (1250 mm) overall length; available on all door leaf types.
• Cylinder Lock: Cylindrical lever lockset functionality for framed single glazed and glass slab swing doors; key-in-lock or SFIC options; patch housing finished to match door rails.
• Mortise Latchset: Wide range of functions and lever styles for framed single glazed doors.
• Electric Strike: Available with black or silver strike plate; requires field coordination of electrical hookup.

Transitions
Transitions maintain visual continuity while meeting planning requirements. Options include inline glazing connectors for glass runs, 2-way variable-angle connectors (90°–180°), and 3-way connectors for glass-to-glass fly-by conditions. Transitions accommodate glass-to-solid wall interfaces and allow single glazing to be installed inline or centered when transitioning.

Materials & Finishes
Select from a full architectural palette of trims and metal finishes, clear glass options and wall hardware materials for cohesive project expression. Trim finishes include light bronze and other metal finishes; glass options include clear glass in multiple thicknesses.

Features & Performance
The platform is engineered for dependable service in demanding interiors. Acoustic performance (single glazed): STC 37 (tested per ASTM E90 / classified per ASTM E413). Structural considerations include load-bearing capacity (ANSI/BIFMA X5.6), transverse-load capacity (ASTM E72), seismic accommodations per zone requirements, and materials compliant with non-combustible building types per ASTM E84.

Sustainability
Certifications and attributes include GREENGUARD GOLD (low-emitting), BIFMA Level 3, Living Building Challenge Declare® listings, indoor air quality compliance and participation in take-back/reuse programs. Materials meet applicable emission testing and indoor air quality standards.

Characteristics / Technical Specifications

• Series: 4SPACE single-glazed platform.
• Top and bottom rail height: 2-1/2" (63.55 mm).
• Glazing strip length: manufactured in 10' (3048 mm) lengths, cut to fit on-site.
• Supported glass thickness (typical): 3/8" (10 mm) minimum; up to 1/2" (12 mm) laminated in specific applications.
• Curved rail nominal radii: 24" (609.6 mm), 30" (762 mm), 36" (914.4 mm).
• Door dimensions (examples): Door Height up to 10' (3048 mm). Leaf width examples: 36" (914 mm), 40" (1016 mm), 42" (1067 mm), 45" (1143 mm), 48" (1219 mm) depending on type.
• Door thickness (framed): 1-3/4" (45 mm).
• Acoustic performance (single glazed): 37 STC (ASTM E90 / ASTM E413 testing).
• Hardware: cylinder locks, mortise latchsets, non-locking and locking ladder pulls, electric strike options.
• Certifications: GREENGUARD GOLD, BIFMA Level 3, Living Building Challenge Declare®; indoor air quality compliant.
• Installation approach: component-based system, rails cut to fit on-site, removable clads for glass leveler access, stocked options for expedited delivery.
