Simple, sustainable sanitation solutions for sites without water, waste water and power connections. This concept is especially suited where there is low visitor footfall and for locations which are not connected to the existing media infrastructure.
Specifications:

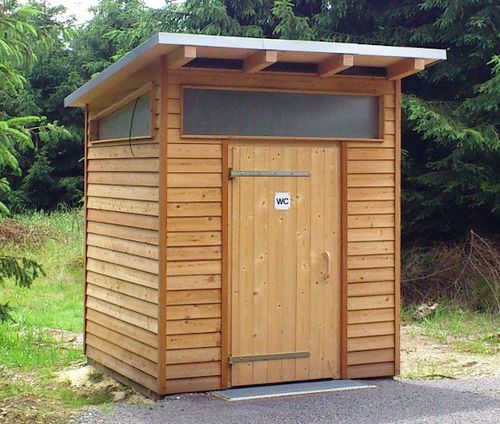

Wooden or concrete cabin (for WLT Urban only)
Single cubicle, dual cubicle or disabled access
Sheet metal roof covering
Lockable access door
Internal cladding with seamless HPL wall covering
Waterless urinal
Disinfectant dispenser
Ceramic sanitary fittings
Stainless steel paper roll holder
Pre-fabricated floor plate
WLT-Urban
A special toilet pan separates faeces and urine and feeds them into separate collection tanks. Ventilation in the collection tanks creates a semi-vacuum to prevent strong smells. The collection tank is made of concrete or plastic, and the contents must be regularly pumped out by an extraction vehicle, depending on the frequency of use. Within the cubicle, toilet paper and a disinfectant dispenser are available to the user for hand hygiene.
WLT Green
Ideal for locations with very low footfall, such as cycle paths and hiking trails, where building regulations do not apply. A special toilet pan separates faeces and urine and leads them into a composting container. A self-powered fan evaporates the urine and dries the faeces. At the same time, this extracts odours from the cubicle. The compositing unit works at external temperatures of 1°C and above. The small amount of dried faeces needs to be regularly removed and disposed of. In order to achieve maximum effectiveness for the compositing unit, daily user frequency should not exceed 10 users.
