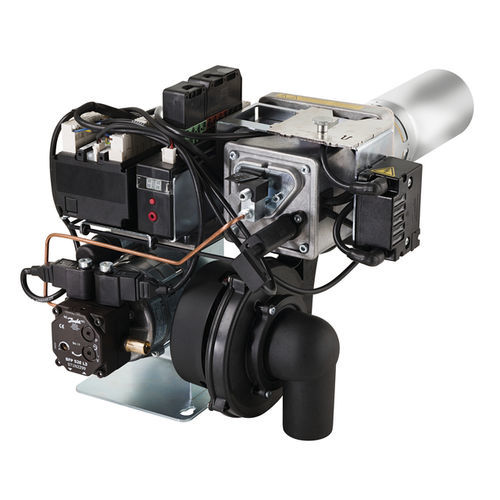

Boiler oil burner HLZ 45 A/BV
Add to favorites
Compare this product
Characteristics
- Applications
- for boiler
- Power
Max.: 90 kW
Min.: 10 kW
Description
Two-stage operating mode
Blue flame burner
Low NOx version
Automated oil-firing with communications interface
Flame detector for flame monitoring
Torque-controllable high-power blower (HRG 134, RG 148)
Rated voltage 230V~50Hz
Package dimensions (LxWxH): 44.0 x 37.5 x 49.0 cm (horizontal installation)
Package dimensions (LxWxH): 40.0 x 40.0 x 46.5 cm (vertical
installation)
Transport weight 13.5 kg (horizontal installation)
Transport weight 13.0 kg (vertical installation)
Catalogs
Oil burner HLZ 45 A/BV
2 Pages
