Lighting pole 99.21000.1V series

galvanised steel

General
Poles designed to complement Hess luminaires.

Technical details
We offer a broad portfolio of poles to meet project-specific requirements. Heights range from 4,000 mm to 8,000 mm. Poles are available with an embedded base or with a flange plate. Approval is generally up to wind zone 2, depending on the luminaire; additional assessment is required for higher wind zones.

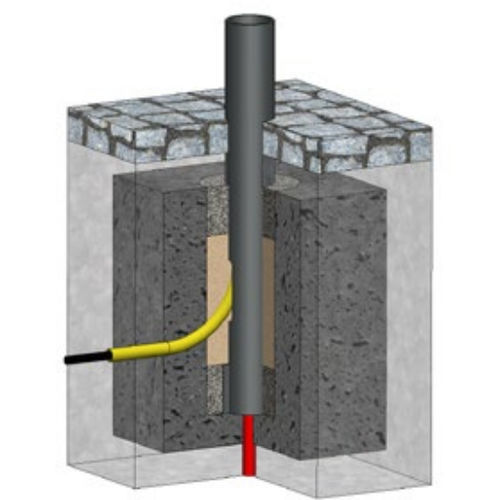

Pole with embedded base: The length of the embedded base is adjusted according to static requirements and ranges from 700 mm to 1,500 mm depending on pole height.

Pole with flange plate: Flange plate dimensions are determined by static requirements and vary with pole height.

Related products

• Embedded base — Tapered poles (selected series)
• Flange plate — Tapered poles

Technical specifications

• Heights available: 4,000 mm – 8,000 mm
• Installation types: embedded base; flange plate
• Embedded base length: 700 mm – 1,500 mm (adjusted to static requirements and pole height)
• Flange plate dimensions: determined by static requirements and pole height
• Wind approval: up to wind zone 2 (depending on luminaire); additional assessment required for higher wind zones
• Design: various designs and heights; paint finish can match chosen luminaire
• Further technical data: provided when a variant is specified
