Lighting pole 99.21000.0V series

galvanised steel

General
Poles designed to complement Hess luminaires in outdoor installations. Available in several designs and finishes to match the chosen luminaire and specific project requirements.

Product type
Stepped pole

Technical details
Available heights range from 4,000–8,000 mm. Poles can be supplied with an embedded base or with a flange plate. Approval is provided up to wind zone 2 depending on the luminaire; additional static assessment is required for higher wind zones.

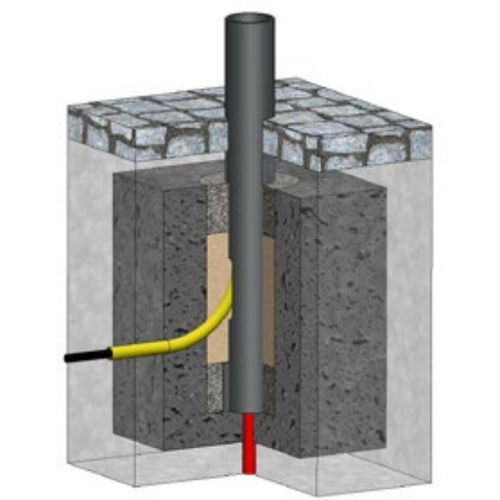

Pole with embedded base
The embedded base length is adapted to static requirements and pole height, typically between 800 mm and 1,500 mm.

Pole with flange plate
Flange plate dimensions are determined by static requirements and the pole height.

Downloads (installation instructions)

• Hess_DB_MASTGRÜNDUNG_DE.pdf
• Hess_DB_FONDATION-POUR-MÂT_FR.pdf
• Hess_DB_POLE_FOUNDATION_EN.pdf

Technical specifications

• Available designs: embedded base or flange plate
• Pole heights: 4,000–8,000 mm
• Embedded base length: 800–1,500 mm (adjusted to static requirements and pole height)
• Flange plate dimensions: determined by static requirements and pole height
• Wind approval: up to wind zone 2 (dependent on luminaire; further assessment needed for higher wind zones)
• Product type: Stepped pole
• Series reference: M-ZA-ER
