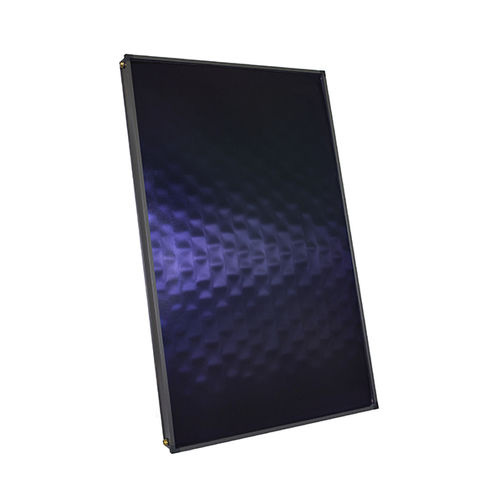

Flat thermal solar collector KS2600F TLP ACR

for heatinglarge-areawith aluminum frame

Flat plate solar collector KS2600F TLP ACR distinguishes itself by maximum efficiency due to the use of anti-reflective glass. The laser welded absorber is made of high quality materials – aluminum and copper (Al-Cu). High efficiency is also achieved by application of selective absorber coating (PVD) and full thermal insulation of the casing. Possible application Flat plate solar collector KS2600F TLP ACR is designed for small houses as well as large solar thermal systems. Perfect for single-family homes and apartment-houses, as well as commercial, industrial and other buildings. They can also be used for heating pool water and to support central heating. The recommended inclination from horizontal is between 30 do 45° for optimum year-round operation. Mounting kits allow installation of collectors on various roofings, directly on the roof slope, as well as on building`s wall, flat roof and on the ground. Structurized, U1 transmittance class glass, allows high optical efficiency 80,2%, confirmed by the Solar Keymark certificate (SPF Rapperswil Institute). The 50mm thick thermal insulation made of rock wool, in combination with wall insulation of 20mm, provide low heat losses. Chosen composition of aluminum ensures protection from external conditions and corrosion. Moreover, the powder painted case is highly aesthetic. Characteristics and application of the KS2600F TLP ACR solar thermal collector The absorber is made of aluminum and copper Aluminum copper absorbers are a common standard on the European solar thermal collectors market. Using an aluminum plate allows production of a lighter collector with lower production costs.
