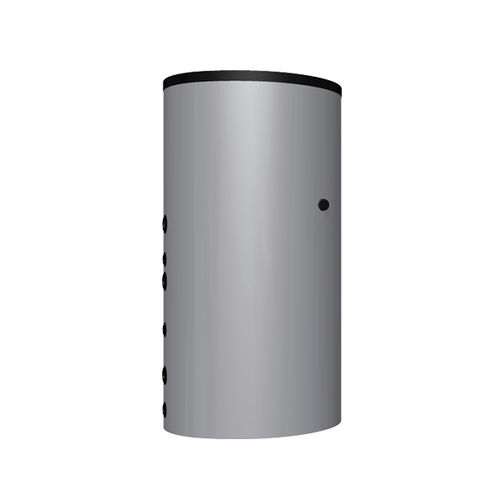

Tank in tank combination storage INTEGRA 500/120 is designed for heating domestic hot water and solar support of central heating. It also integrates multiple heating sources in one system.
Information about the product
INTEGRA 500/120 is a tank inside a tank solution. The inner tank is used for heating domestic hot water by taking the heat from surrounding hot water. Hot water may be heated by mutliple sources at the same time: boiler, heat pump, fireplace with water jacket or an electric heater as well as indirectly - through solar thermal system using a coil heat exchanger. Therefore a solar thermal system not only heats the domestic hot water, but also supports central heating in the building. Due to its higher capacity, INTEGRA is also a heat buffer and a hydraulic coupling. It is usefull in heating systems with multiple heat sources and heating circuits. It eliminates negative interference of heating circuits and heating sources (hydraulic separation, ensurance of required water flow).
INTEGRA heater is equipped with 100mm thick polyurethane foam insulation, which limits heat loss. Energy effeciency class „C” proves high standard as well as optimum relation of energy efficiency to purchase and operation costs. The case is made of hard plastic, resistant to dirt and damage.
Universal heater with tank-in-tank construction
Special inner construction and 3 temperature zones
Double mode operation: heating domestic hot water and supporting central heating
Possible cooperation with 5 different heat sources (including solar thermal system and an electric heater)
