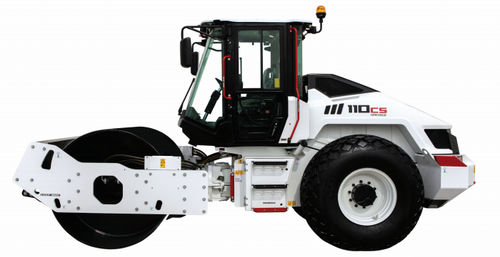

Roller compactor HMK 110 CS

Engine - Brand, Model - DEUTZ, TCD 2012 L04 2V Dizel Engine Number of Cylinders - 4 in line Bore & Stroke - 101 mm x 126 mm Displacement - 4.038 cc Maximum Power - 138 HP (103 kW) @ 2400 rpm Maximum Torque - 520 Nm @ 1600 rpm Steering System - Oscillation angle - ± 12˚ Articulation angle ± 35˚ Driving Speed - 1st gear - 5 km/h 2nd gear - 6 km/h 3rd gear - 9 km/h 4th gear - 12 km/h Dimension - Length (standard equipment), Max - 5.850 mm Height (with ROPS cabin), Max 2.970 mm Height without cabin (expedition) - 2.280 mm Width, drum - 2.130 mm Diameter, drum - 1.500 mm Capacity - Fuel tank - 350 L Hydraulic tank - 105 L Weight - Standard machine operating weight - 11.150 kg
