thermostatic shower column / electronic / commercial
CONGENIAL SERIES

{{requestButtons}}

Characteristics

  • Type:

    thermostatic, electronic

  • Market:

    commercial

Description

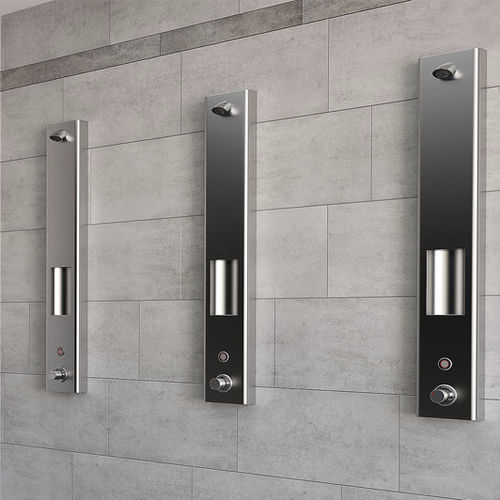

Electronic shower faucet designed as shower element in nominal diameter DN15. With thermostatic mixing device for connection to cold and hot water. Application in new construction building and renovation in commercial, semi-public and public sanitary facilities.


· Stainless steel shower element. Model with mounting frame for fixing the water path, including mounting material
· Hood cover and mounting frame made of stainless steel 1.4301
· All visible surfaces made of brushed stainless steel, dimensions (HxWxD): 1400x220x80 mm
· Multifunction tool for maintenance work
· Adaptive multifunctional water path CONGENIAL with solenoid valve 6V/DC ROBUST, bistable
· Upgrade and retrofitting functions
· Water path: dezincification resistant forged brass, as a high-quality thermostatic mixer, thermostat handle: chromed brass
· Visible components made of solid, chromed brass, with safety stop
· Choice of temperature setting range
· Integrated check valve in the bypass check valve and strainer cartridges for water inlets
· All functional parts can be disassembled from the front during maintenance work without removing the valve body
· Electronic operation of the shower function via piezo switch with start/stop function, piezo switch: colour ring red, rosette chromed
· The water flow time of the shower function is easily adjustable in electronic showers

· Mains (CNX): Power supply over 30 V/DC power supply in the control panels 64 and 150
