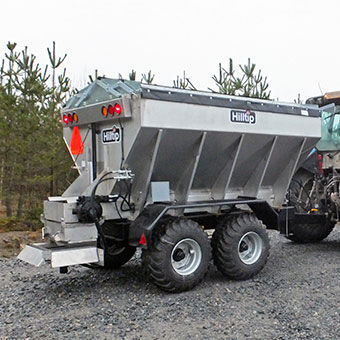

SPREADER DESIGN
With capacity from 3000 to 10500 liter to spread any combination of bulk salt and sand, these stainless steel spreaders are perfect for contractors who want to cut down on extra trips to the yard for reloading. The complete assembly mounts easily on pickup, dump and platform trucks making it ideal for municipalities, shopping malls, industries, hospitals and private contractors.
The spreader can be optionally equipped with a Liquid Spray System for Pre-wet salt spreading, to improve the anti-icing efficiency and reduce material costs.
STANDARD EQUIPMENT
•Stainless steel material hopper with strong lift points in all corners
•Conveyor made of 30 cm wide all-steel pintle chain with 5×20 mm cross bars
•Inverted V prevents material compaction and reduces wear on drive train components
•High quality chute in stainless steel guides the material from the conveyor to the spinner plate
•Extra wide rear deflector protects the rear and undercarriage of the vehicle
OPTIONAL EQUIPMENT
•This spreader can be optionally equipped with a Pre-wet Liquid Spray System. The pre-wetting method improves how the spreaded salt binds to the ground, for a better anti-icing / de-icing result.
Hopper length - 305 - 305 - 365 - 365 - 425 - 365 - 425 - 425
Overall length - 365 - 365 - 425 - 425 - 485 - 425 - 485 - 485
Width - 215 - 215 - 210 - 210 - 210 - 210 - 210 - 210
Height - 145 - 145 - 145 - 160 - 145 - 175 - 160 - 175
Empty weight - 975 - 1050 - 1400 - 1485 - 1670 - 1475 - 1750 - 1800
Capacity m3 (water level) - 4,5 - 5,5 - 6,5 - 8,0 - 8,0 - 9,0 - 9,5 - 10,5
Capacity m3 (rounded) - 5,0 - 6,5 - 7,5 - 9,0 - 9,0 - 10,0 - 10,5 - 13,0
Spreading wideness - 1-13 m - 1-13 m - 1-13 m - 1-13 m - 1-13 m - 1-13 m - 1-13 m - 1-13 m
