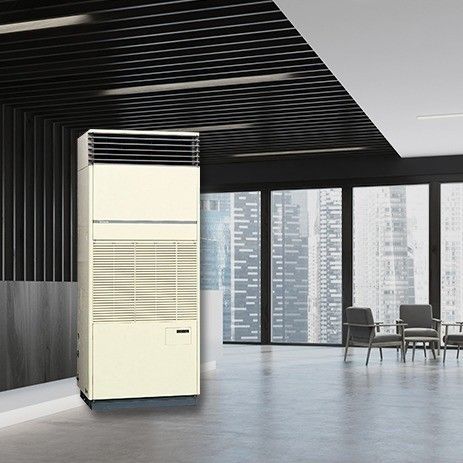

The Floor Standing Air-Cooled split system is designed for large cooling capacities. The system offers a choice between free-blow or ducted arrangements. Engineered to accommodate vast open-plan environments (free-blow) or interconnected rooms (ducted), these systems demonstrate capacities ranging from 16-98kW (air-cooled).
Air-cooled large commercial split system
Discover our array of air-cooled systems boasting capacities ranging from 16-98kW, achieving an impressive Cooling EER of up to 3.30. These systems feature Floor Standing units with a footprint spanning from 0.5m² to 1.8m², providing a compact yet powerful solution for cooling expansive spaces.
Select Between Ducted or Free-Blow Stand Up Units
The system offers the versatility of free-blow units, which feature multi-directional louvres integrated into the indoor floor-standing unit. Meanwhile, ducted units provide an easily accessible duct flange connection on the top of the unit.
Compressor safeguards built in
The compressor is equipped with a high-pressure switch, a 3-phase overcurrent transformer to protect from electrical surges, a crankcase heater to prevent refrigerant loss when the compressor is inactive, protection against excessive superheat/discharge gas temperatures that can fatigue components and lead to inefficient system operation, and a timer relay system to prevent the compressor from restarting too quickly.
High-Performance Indoor Unit Evaporator
Experience exceptional performance with our high-performance indoor unit evaporator. This evaporator generates high static pressure and smooth airflow while consuming minimal power.
