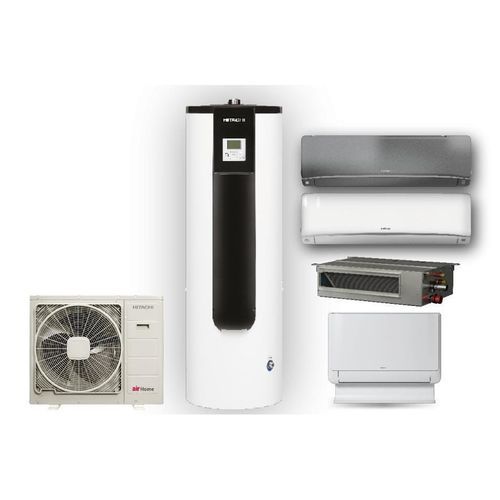

Air source heat pump AIRHOME TRIPLE C

air/aircommercialresidential

Overview
airHome Triple C is a 3-in-1 multi-split thermodynamic system using R32 refrigerant that combines domestic hot water production with multi-zone heating and cooling from a single outdoor unit. Suitable for sustainable homes, new-build and refurbishment projects where integrated climate control and DHW are required.

Key features

• 3-in-1: domestic hot water, heating and cooling supplied by a single outdoor unit
• Refrigerant: R32 for improved efficiency and reduced environmental impact
• Outdoor unit capacities: 5.3 kW, 7 kW and 8.5 kW
• Supports 1 to 4 indoor units (indoor unit capacities 1.5–7 kW)
• Compatible indoor types: cassette, wall-mounted, console, ducted, floor
• Up to 7 outdoor units compatible with built-in WiFi*
• Smart connectivity and voice control options

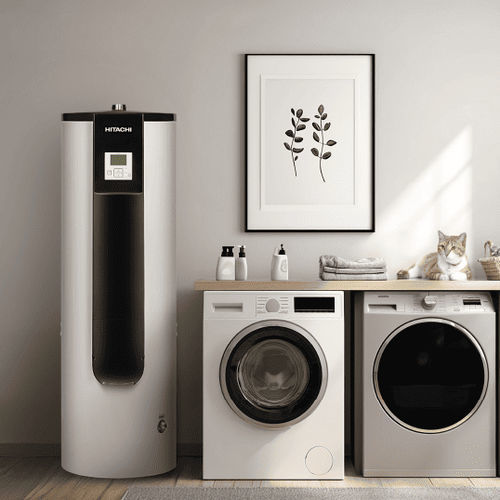

Domestic hot water
Two stainless steel tank sizes: 190 L and 270 L. Fast recovery: approximately 2h10 for 190 L and 2h45 for 270 L. Active titanium anode available as an option to protect the tank.

Indoor units compatible

• Yutampo R32
  • 2 sizes: 190 L & 270 L
  • Stainless steel tank
  • Active titanium anode (optional)
• airHome 400
  • Built-in WiFi
  • Anti-virus filter
  • Frostwash
  • Mold Guard
• airHome 600
  • Built-in WiFi
  • Anti-virus filter
  • Frostwash
  • Mold Guard
  • Aqtiv Ion
  • Motion Sensor
• airHome 800
  • Built-in WiFi
  • Anti-virus filter
  • Frostwash 3.0
  • Mold Guard 2.0
  • Aqtiv Ion
  • Motion Sensor
  • 4D air diffusion
• airHome Floor
  • Built-in WiFi
  • Fast attainment and maintenance of desired temperature
  • Wider dynamic airflow
  • Removable foot for easy integration
• airHome Ducted & airHome Ducted Slim
  • Gentle, quiet diffusion
  • Space-saving and imperceptible airflow
  • Invisible installation
  • WiFi optional
• airHome Cassette
  • Designed for light commercial projects
  • Humidity sensor
  • 600 x 600 mm format
  • Motion sensor
  • Individual shutter control
  • WiFi (optional)

Smart control & connectivity
Certain indoor models include built-in WiFi (WiFi optional on some cassette, ducted and ducted slim units). Compatible with airCloud Go for remote control and scheduling. Voice assistants supported: Alexa and Google Home. Programmable thermostats available to optimize energy use and comfort.

Performance & comfort
High seasonal efficiency with ratings up to A++ in heating and cooling modes. Designed to provide year-round thermal comfort while lowering energy consumption.

Technical specifications

• Product type: Multi-split air-to-air heat pump with integrated domestic hot water tank
• Refrigerant: R32
• Outdoor unit capacities: 5.3 kW, 7 kW, 8.5 kW
• Supported indoor units: 1 to 4 units; indoor unit capacity range 1.5–7 kW
• Domestic hot water tank sizes: 190 L (≈2h10 recovery), 270 L (≈2h45 recovery)
• Tank material: Stainless steel
• Optional: Active titanium anode
• Energy rating: up to A++ (cooling & heating)
• Connectivity: Built-in WiFi (selected indoor units), airCloud Go compatibility, voice control with Alexa & Google Home
• Compatible indoor unit types: Yutampo R32, airHome 400, airHome 600, airHome 800, airHome Floor, airHome Ducted / Ducted Slim, airHome Cassette
• Indoor features (model-dependent): Anti-virus filter, Frostwash / Frostwash 3.0, Mold Guard / Mold Guard 2.0, Aqtiv Ion, Motion Sensor, 4D air diffusion, humidity sensor, individual shutter control
