Hot water convector FXX

751 w...1000 w2501 w...3000 wcontemporary

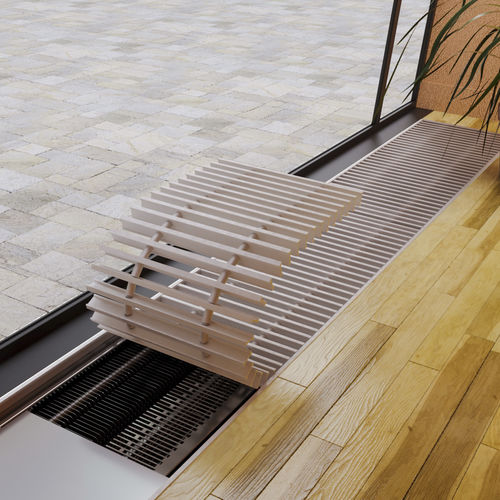

Fan-Assisted Trench Heating Built-in fan for higher thermal output. Heating and cooling options. This type of Trench Heating is used as primary/main source of space heating, and also as a cold air barrier under large glazed areas removing condensate. All Hitte fans operate on a direct current with a safe voltage of 24 V, which not only provides high efficiency, but also a low noise level ideal making it ideal for bedrooms, children’s rooms, hotel rooms, etc. Hitte Fan-Assisted Trench Heating is divided into three types: – FXX for standard dry environments – FCX combination of heating and cooling for the summertime Standard Feature Choice of trough material – stainless steel or black powder coated FeZn steel; Choice of natural, light bronze or dark bronze painted aluminium perimeter trough edging; CuAl heat exchanger with air valve and ½” brass ends A tangential DC 24V fan with protective metal cover Spacers to protect trench geometry during installation and concrete pouring. Cover plates to protect water and electrical connections; Drainage connectors for wet/humid environment trench units and combined heating and cooling trench units A set of fixing legs and level adjusting screws 18 mm MDF cover to protect against damage and falling debris during installation Bespoke trenching heating systems can be designed and manufactured to meet the most challenging project specifications.
