glue-laminated wood deck slab / for ceilings

{{requestButtons}}

Characteristics

  • Material:

    glue-laminated wood

  • Applications:

    for ceilings

  • Span:

    Max.: 18 m (59'00")

    Min.: 2 m (6'06")

  • Width:

    Max.: 280 mm

    Min.: 100 mm

Description

Scandinavian spruce, visible - local spruce, visible and non visible - mountain larch

Product description

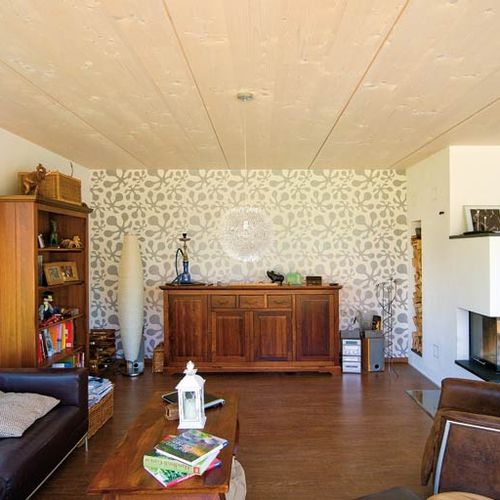

Due to the good prefabrication, SCHNEIDER glulam ceilings can be installed quickly and easily. Furthermore, they are immediately solid and passable on foot. Thereby they offer outstanding characteristics, such as stability and a comfortable optic. With this organic solution, a very enjoyable room climate can be obtained. Installation, also belated, is possible without any problems.

Characteristics Glulam ceiling elements
Different widths possible from 50 cm up to 100 cm
Length from 2.3 to 18.0 m (minimal length for one element / cover size = 5.0 m)
DIN 1052:2008, BS 11/GL 24h
Kiln dried, wood moisture max.12 % ± 2 %
Planed on both sides, bottom side chamfered 4 mm (measured diagonally), upper side not chamfered, trimmed precisely
Lamellae 40 mm
Special dimensions are possible on request
More technical information on the pdf sheet
