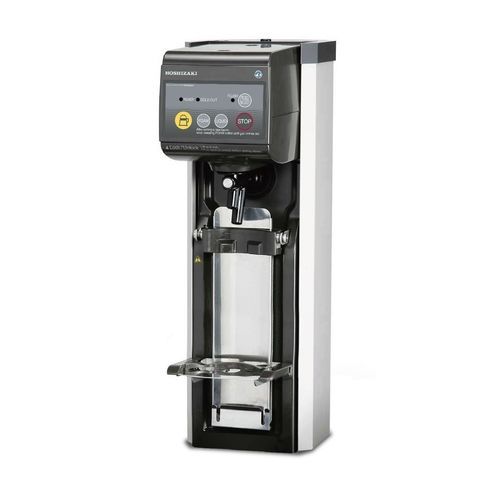

Countertop beverage dispenser BEERMATIC CFD-AS61A-EU

commercialfor barservice

Overview
The BEERMATIC single tap is a fully automatic draft beer dispenser that delivers pre-set volumes and a controlled beer head for consistent servings. Hands-free portion control enables repeated identical pours while freeing staff for other tasks in busy commercial environments.

Key features

• ADJUSTABLE BEER-TO-HEAD RATIO: Beer-to-head ratio can be set to suit different beer styles or local preferences. The system provides a continuous flow rate of 35 ml/s (~1.2 bar, 10 m hose) without downtime.
• IMPROVED OPERATIONAL EFFICIENCY: Automated pouring requires no supervision during dispensing, allowing staff to process orders, payments or cleaning simultaneously. Automated portioning optimizes service for high-volume operations.
• REDUCED WASTE: Precise portion control reduces spillage of beer and head, lowering draft beer waste commonly estimated up to 20% per keg.
• HYGIENE AND FOOD SAFETY: Controlled dosing avoids manual cutting/skimming, minimizes glass-to-person contact points and simplifies cleaning via a compartmentalized design.

Documentation (available)

• Declaration of conformity (PDF)
• Instruction manual (PDF)

Technical specifications

• Item number: 66AZ-D135
• Model name: BEERMATIC CFD-AS61A-EU
• Brand: Hoshizaki
• Warranty period: 2 Years on Parts & Labour - based on country agreement
• Country of origin: Japan
• Accessories included: Cleaning sponges, Platform
• Title: Beer Dispenser, Single Tap
• Compatibility: Compatible with glasses with inner diameter ≥50 mm and outer diameter ≤105 mm; minimum 20 mm height difference between large and medium glasses. For other sizes consult the installation manual. Available as special order.
• Width: 170 mm
• Depth: 307 mm
• Height: 520 mm
• Packed width: 795 mm
• Packed depth: 335 mm
• Packed height: 410 mm
• Packed volume: 0.1092 m³
• Electric consumption: 0.1 kW
• Ambient temperature: 5 °C – 32 °C
• Voltage: 220-240 V ±10%, 50 Hz
• Circuit breaker: 2 A
• Exterior: ABS front and side panels, galvanized steel bottom plate
• Flow rate: 35 ml/s (~1.2 bar, 10 m hose)
• Net weight: 10.2 kg
• Gross weight: 16 kg
• Power supply: 1/220 - 240V/50Hz
• Cooling system: For remote cooling system
• SKU: 66AZ-D135
