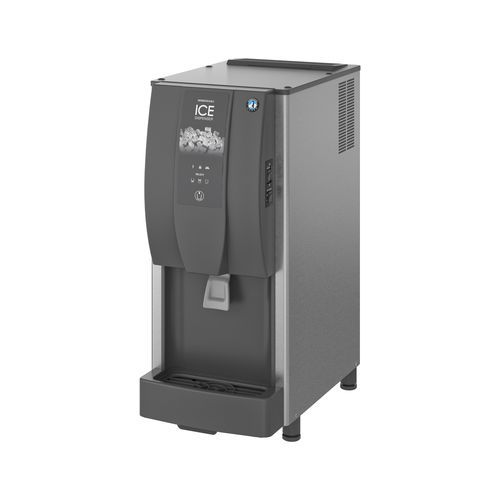

Floor-standing ice dispenser DCM-120KE-HC

with legsfor industrial usefor commercial kitchen

Product description This Hoshizaki DCM-120KE-HC is an ice and water dispenser delivering up to 125 kg of cubelet ice and/or water per 24 hours. It is intended for commercial and industrial catering points where rapid, hygienic portioning of ice and water is required. The unit integrates ice production, protected storage and fast dispensing in a compact footprint suitable for limited spaces.

Available dispense options

• Cubelet ice only
• Cubelet ice and water
• Water only

Key features

• Sustainable refrigerant: uses R290 (natural refrigerant, low GWP).
• Waste control: intuitive portion control to regulate servings and reduce waste.
• Food safety: enclosed storage and dispense path minimise contamination risk.
• Compact footprint: designed for small installations (see specifications for exact dimensions).
• Plug & play: ready for straightforward installation and commissioning.

Specifications (table) Item number: L032
Model name: DCM-120KE-HC
Brand: Hoshizaki
Product configuration: Self Contained
Warranty period: 2 Years on Parts & Labour - based on country agreement
Country of origin: UK
Accessories included: Brush, Installation kit
Title: Dispenser, Ice & Water
Please observe: Also available with push button as alternative to lever design (DCM-120KE-P-HC)
Corresponding water filters: 4HC-H Single Water Filter, 4HC Replacement Cartridge
Width: 350 mm
Width (packed): 440 mm
Depth: 585 mm
Depth (packed): 655 mm
Height: 765 mm
Height including legs (minimum): 815 mm
Height including legs (maximum): 830 mm
Height (packed): 1026 mm
Volume (packed): 0.2957 m³
Dimensions legs: Including legs at 50-65 mm
Electric Consumption: 0.45 kW
Ambient temperature (maximum): 40 °C
Ambient temperature (minimum): 5 °C
Voltage range (Rated Voltage): ±6%
Water supply pressure (maximum): 0,78MPa (7,8bar)
Water supply pressure (minimum): 0,05MPa (0,5bar)
Water supply temperature (maximum): 35 °C
Water supply temperature (minimum): 5 °C
Electrical circuit breaker protection: 10 A
Exterior: Stainless steel (Side, Rear), ABS molding (Front, Top, Drain pan)
Gross weight: 65 kg
Net weight: 56 kg
Heat Rejection (AT 32°C, WT 21°C): 0.78 kW
Power supply: 1/220 - 240V/50Hz
Storage bin capacity: 4 kg
Dispense mode: Lever arm
Cooling system: Air Cooled
Ice type: Cubelet + Water
Ice production: 125
Water consumption - Air cooled ice makers: 0.125
CO2 equivalent: 0.285 kg
GWP: 3 GWP
Refrigerant: 0.095 kg
Refrigerant type: R290
SKU: L032

Documentation (available) Declaration of conformity, Instruction manual, Spec sheet (see documentation resources for PDFs)
