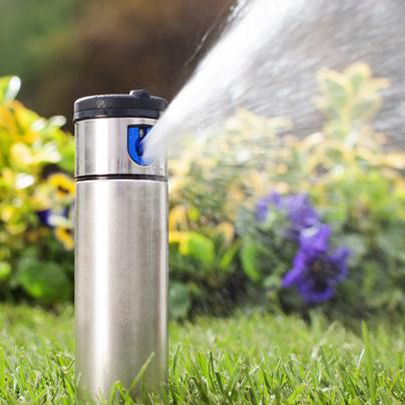

Rotating sprinkler I-20

Radius: 17’ to 46’ Flow: 0.36 to 14.8 GPM Inlet Size: 3/4'' NPT The I-20 is loaded with upgraded features such as FloStop control, check valves, and efficient nozzles that make it the perfect choice in a range of applications. With 34 nozzle choices, a 17’ to 46’ radius, and 6 body choices, the I-20 is an indispensable rotor. Whether you’ve got a small area, sandy soil, or a mix of shrubs and grass, the I-20 is ready to water with efficiency and reliability. Recent improvements include automatic arc return; non-reversing 360, from 50 to 360 degrees; and a non-strippable, vandal-proof drive mechanism that prevents gear stripping and saves repair costs. Adding FloStop® control, easy through-the-top arc adjustment, and a standard drain-check valve all equate to a rotor that stands second-to-none in its class. KEY BENEFITS Patented automatic arc return feature returns the turret back to the original arc pattern if vandalized; adjustable arc from 50° to 360° Non-strippable drive mechanism is protected from damage if turned in the opposite direction of travel Part- and full-circle in one model for flexibility across landscapes and reduced inventory Headed and slotted setscrew allows radius adjustment with a Hunter wrench or flat-blade screwdriver FloStop® closes the flow of water from individual sprinklers to change the nozzle or perform repairs Flat-top nozzles allow fast, easy insertion QuickCheck™ arc mechanism for fast arc adjustment Available stainless steel riser for extra durability Drain check valve prevents low-head drainage (up to 10' of elevation)
