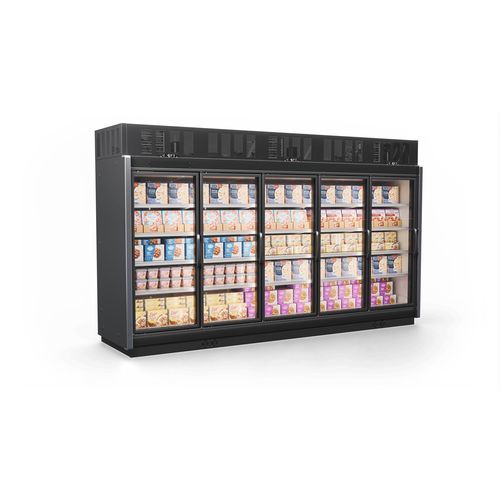

Upright refrigerated display case RLN-A, RMN-A

for shopmetalwith door

Product overview
Impact® RLN-A (low temperature) and RMN-A (medium temperature) are reach-in merchandisers with a top-mounted Microblock™ R-290 self-contained refrigeration system. Designed for plug-and-play installation, these units provide compact, modular refrigeration for single units or lineup configurations and are suitable for retail and foodservice environments where through-door access and simplified installation are required.

Key features

• Factory-charged Microblock™ R-290 top-mounted system — compressor, condenser and evaporator integrated
• Plug-and-play installation using a standard outlet and single cable; no external drains required
• Available in low and medium temperature versions to meet product temperature requirements
• Compact footprint fits through standard 82" doorways; narrow profile for dense merchandising runs
• Flexible deployment: standalone or lined-up units (acrylic partition kit required)
• LED mullion lighting and 24-inch shelf depth for optimized product visibility and display
• Models configured with 2 to 5 doors and 1–2 compressors depending on length

Microblock™ technology
Microblock™ integrates the compressor, condenser and evaporator into a single top-mounted module pre-charged with R-290 refrigerant. The self-contained design eliminates external refrigeration piping and drains, simplifies installation to a standard electrical connection, and allows rapid replacement or service of the compact unit. Available in multiple sizes and both medium and low temperature configurations.

Low temperature applications
RLN2-A | 1 Compressor | 2 Doors | 62 in (1,575 mm)
RLN3-A | 2 Compressors | 3 Doors | 92 1/2 in (2,350 mm)
RLN4-A | 2 Compressors | 4 Doors | 122 7/8 in (3,121 mm)
RLN5-A | 2 Compressors | 5 Doors | 153 1/4 in (3,892 mm)

Medium temperature applications
RMN2-A | 1 Compressor | 2 Doors | 62 in (1,575 mm)
RMN3-A | 2 Compressors | 3 Doors | 92 1/2 in (2,350 mm)
RMN4-A | 2 Compressors | 4 Doors | 122 7/8 in (3,121 mm)
RMN5-A | 2 Compressors | 5 Doors | 153 3/8 in (3,896 mm)

Accessories and display options

• Acrylic partition kit for seamless lineups
• Lift-out bottom rack for simplified cleaning
• Heavy-duty front panels and deck pans for increased service life
• Additional shelf sizes, product stops, price tag molding and bumpers
• Contoured fascia and Innovator™ doors for clear viewing and consistent performance

Technical specifications

• Series: RLN-A (low temperature) and RMN-A (medium temperature)
• Refrigeration: Factory-charged Microblock™ R-290 self-contained system (compressor, condenser, evaporator integrated)
• Installation: Plug-and-play using a standard outlet and single cable; no external drains required
• Configuration: Standalone or lineup installations (acrylic partition kit required for lineups)
• Door type: Innovator™ doors
• Lighting: LED mullion lighting
• Shelves: 24-inch shelf depth standard; additional sizes available
• Footprint: Narrow design fits through standard 82" doorway
• Available lengths and compressor counts: see model listings above
