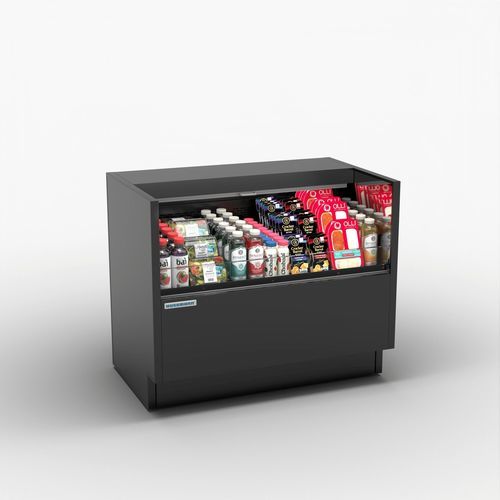

Counter refrigerated display case FS-OB

islandfor shopfor bakery

Product overview
The FS-OB is an open, low-profile refrigerated merchandiser engineered for medium-temperature fresh product presentation in constrained or integrated retail spaces. It is suited to point-of-sale counters or standalone installations and is available in four nominal lengths.

Designed for flexibility and placement
Compact footprint and plug-and-play electrical on standard 5-15R outlets (6' model excluded) allow rapid deployment in checkout lanes, front-of-store displays and small-format layouts. Rear air intake and exhaust support consistent temperature performance without a floor sink.

Case model dimensions

• FS-OB-1017-35A | Nominal 3' — Length 36 1/4 (920 mm) × Depth 24 1/4 (615 mm) × Height 32 1/2 (825 mm)
• FS-OB-1017-46A | Nominal 4' — Length 47 1/4 (1,200 mm) × Depth 24 1/4 (615 mm) × Height 32 1/2 (825 mm)
• FS-OB-1017-58A | Nominal 5' — Length 59 1/4 (1,505 mm) × Depth 24 1/4 (615 mm) × Height 32 1/2 (825 mm)
• FS-OB-1017-70A | Nominal 6' — Length 71 1/4 (1,810 mm) × Depth 24 1/4 (615 mm) × Height 32 1/2 (825 mm)

Key features

• Plug-and-play operation on standard 5-15R outlet (6' model excluded)
• Energy-efficient, quiet fan motors
• 3500K LED canopy lighting for product visibility
• Rear air intake and exhaust with tempered glass front air return
• Integrated condensate pan — no floor sink required
• Eco-friendly R-290 refrigerant compliant with current regulations including the AIM Act
• Optimized for merchandising more fresh product in limited space
• Designed to integrate with counters to extend fresh product display at point of sale

Optional upgrades

• 6" merchandising shelf
• Internal riser for elevated product display
• Energy-saving night curtain
• Autobrite mirror-finish end panel interior
• Interior finishes: White, Brushed Stainless Steel (horizontal grain)
• Exterior finishes: Matte Black, White, Brushed Stainless Steel
• Extended air dam (10')
• Rear chimney
• Various bumper styles and locations

Technical specifications & applications

• Series / Model: FS-OB
• Temperature range: Medium-temperature merchandiser
• Refrigerant: R-290 (meets current regulations including the AIM Act)
• Electrical: Plug-and-play on standard 5-15R outlet (6' model excluded)
• Lighting: 3500K LED canopy lighting
• Airflow: Rear intake and exhaust; tempered glass front air return
• Condensate management: Integrated condensate pan — no floor sink required
• Typical applications: Meal kits, produce, bakery, deli, dairy and beverage merchandising
• Available nominal lengths: 3', 4', 5', 6' (model codes FS-OB-1017-35A, -46A, -58A, -70A)
