Intelligent video surveillance system WV-XAE207W

for people

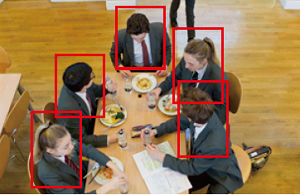

AI applications Install the software on the camera to enable the occupancy detection function to send notifications to external systems (network disk recorder or Video Insight VMS) when set conditions are met. It counts the number of objects in a specified area and issues an alarm when the number exceeds a specified threshold. Information of the number of people in the area can be output externally via HTTP or MQTT. Size of people image - Min. size: width 64 pixel (in case of S series 2MP model) Detectable angle of view - Vertical : 0° to 45° Detection Object - People / Vehicles / Bicycles / Objects detected by AI on-site learning Max. number to detect at the same time - People / Vehicles / Bicycles: Max. 40 Objects Objects detected by AI on-site learning: Max. 20 objects Detection Area - Max. 4 areas (polygonal) Number of objects to detect - 1 to 40 objects / area Detection time - 0.1 to 3600 sec/area Recommended location to install - People: Indoor Vehicles / Bicycles / Objects detected by AI on-site learning: Indoor/ Outdoor Min. illuminance - 50 lux
