Power socket MEETING

multimediamultipledesk

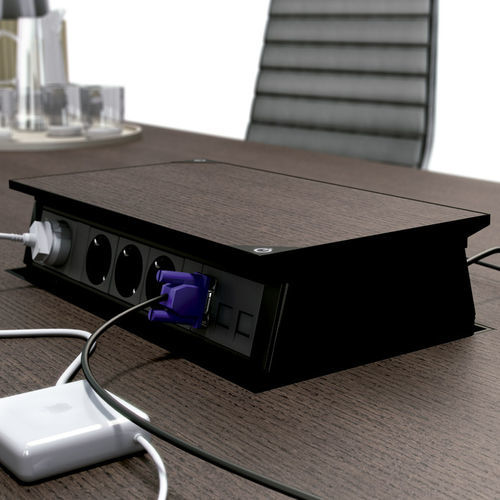

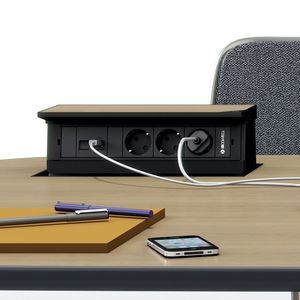

Maximum integration Box with motorised lifting electrification with two sides for meeting tables. Integration Reduced visual impact due to customisation of cover finishing with the material left over from cutting the table to install the Meeting box. To facilitate installation, plastic frames are supplied to cover the cuts made in the table and save on edging. Quietness Precise and quietness vertical elevation. It is opened and closed by means of an electronic device operated by a pushbutton integrated in the cover or connector input for operation using an external signal. Power sockets, USB chargers, data and multimedia totally wired internally with visible access installed for quick connection. Connections on both sides. Electrical supply through built in male rapid connector. For table thicknesses of 25 to 40 mm. For thicker tables, create a recess in the table. Cover is 5mm thick. - Supply for lifting device through the same input as sockets. - Synchronous bi-directional motor. - Voltage 230v/50Hz. - Condenser 0.22 microfarads/400Vca. - Absorbed power 8W/VA. - Motor temperature limit -10ºC +55ºC. - Minimum inversion pause: 0,1s. - Safe electronic closing system, with regulation of anti-trapping sensitivity. - Activation by means of highly sensitive membrane bright button. - Connector for activation by means of domotics. Compatible with "Ultra-Compact USB Smart Charging System" up to 60W.
