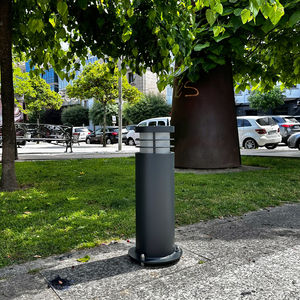

Urban bollard light CAMINO-S®

contemporarygalvanised steelthermo-lacquered steel

Robust and solid beacon, designed for illumination of roundabouts, walkways, footpaths and other similar environments, integrating seamlessly into most urban landscapes Galvanised and thermo-lacquered steel beacon, with an earth connection and internal space to house a Claved type junction box. No additional manhole is required for connections. Stainless steel fasteners and screws. Constructed from S-235-JR or higher carbon steel, hot-dip galvanized according to ISO 1461. Additional protection is provided by an initial Washprimer layer and a second layer of polyester paint, both applied through a powder-coating process (colour upon request). Highly resistant to rust, humidity, corrosion, and polluted environments. LED Module: • Led Lumileds Luxeon T LED • Power: up to 30W • Efficiency: up to 120 Im/W • Luminous output: up to 3600 Im • Colour temperature: 3000K - 4000K (other temperatures: consult) • LED module protection rating: IP68 • Electronic driver protection rating: IP67 • Operating temperature: -40°C~+ 50°C • Main material: Aluminum 6063 For more information, please contact us
