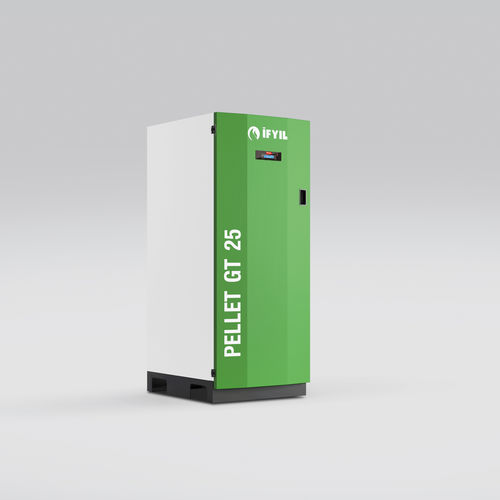

Pellet boiler GT 25

residentialindoor

• Modulation combustion • Full automatic cleaning burning pot • Digital control panel multi language LCD panel • Auto ignition • Manual cleaning turbulators • Efficiently burning by powerfull extractors • Chrono (weekly) programing • Back flame safety • Room thermostad connection • Heat exchanger for hot water (optional) Özellikler Ölçülen Değerler Boiler Type/ Boiler Model Pellet GT 25 / Pellet Boiler Class ★ ★ ★ ★ ★ Nominal Heat Power kW 25 Minimum Heat Power kW 8,3 Hourly Fuel Consumption (min.-max.) kg/h 1,9 - 5,8 Efficiency % 91,5 Fuel Tank Capacity kg 50 Chimney Gas Temperature oC 119 Water Volume of Boiler lt 72 Electricity Consumption W 200 Boiler Weight kg 273 Gross Weight (Packaged) kg 278 Width (W) x Length (D) x Height (H) mm 604 x 901 x 1387 Water Inlet - Outlets inch 1 Drain Pipe mm Ø 60 Chimney Outlet Diameter mm Ø 100 Max Working Water Pressure bar 3 Designed Pressure bar 3 Test Pressure bar 4,5 Minimum Draught Depressure pa 12 Fuel Type mm Ø 6/L:30 Pellet Electricity Connection Vac/Hz. 230/50 Water Heating Temperature Range oC 60 - 80
